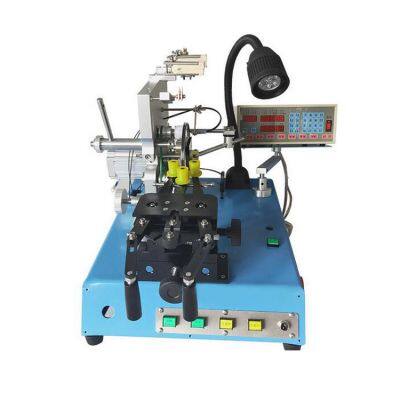

HY-R23 Desktop 3-inch to 8-inch gear-type magnetic ring winding machine

Product Details

Product Description

Product Description
Magnetic ring inductor coil automatic winding machine
HY-R23 Desktop 3-inch to 8-inch gear-type magnetic ring winding machine
For a variety of switching power transformers, supplies, Japanese word transformer, inductance coil, relay coil
1, Taiwan controller, brushless DC motor and drive, environmental protection, low noise;
2, multi-functional microcomputer design, data easy to set, turn off to save data, and power-down protection;
3, teaching function design, can be assisted from the starting point and the width of the position setting, the suspension of the editing of winding information;
4, 0 ~ 999 sets of steps to set the capacity, with brushless motor and precision stepper motor, can be easily set forward, reverse, cross slot and sparse winding work;
5, Special cable assembly design, can be placed up to 6 different diameter, with insulating tape station, can be wound, the tape, insulation with a complete: replaceable type fixture or fly fork winding group operating.
6, Unique motor design, the spindle is directly driven by the motor, clean and environmental protection, improve sensor life;
7, low speed high torque, low power, high torque, suitable for winding switching power supply, solenoid valves, relays, general coil, using a wide range.

Model specification	HY-R23 side slip ring winding machine
Wire diameter size	0.05-0.35mm
Lap range	50-4000T
Storage ring width	2.0-10mm
Motor speed	0-2800
Number of memory groups	1000
voltage	220v/50HZ
Chassis size	900X700X600mm
Machine weight	40Kg (Packing wooden box 66kg)

Model specification	HY-R25 Belt type ring winding machine
Wire diameter size	0.15-1.4mm
Lap range	15-1500T
Storage ring width	2.0-10mm
Motor speed	0-2200
Number of memory groups	1000
voltage	220v/50HZ
Chassis size	900X700X600mm
Machine weight	40Kg (Packing wooden box 66kg)

---
