Manufacturer Weaving Factory Textile Low Price Electronic Jacquard Machine for Clothing

Product Description

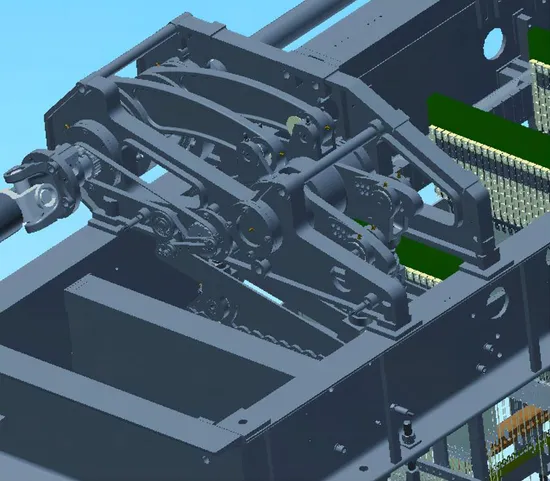

· PRODUCT INTRODUCTION--------------------------------------------------------- Type:WMF1536Z,WMF2816,WMF5376Z,WMT6144Z Speed: Upto 450RPM Selection Method: Module + drive circuit board + aluminum alloy lifting knife Shedding Form: double-lift,fully-open shedding Shedding Height: The front shedding width range is 45-109mm. Back shedding width range is 62-120mm with easy adjustment. Note: Other specification can be made according to customers' requirement CHARACTERISTICS-------------------------------------------------------------------------------- This model adopts double-sided four-eccentric wheel mechanical transmission mode,which runs smoothly with low mechanical vibration and low noise;Double-sided wall plate are made of castings with small deformation and reduce the load of the machine itself;
The height of the knife opening is designed with positive and negative threads,andthe adjustment method is simple, Adopt high-performance modules +aluminum alloy knife selection method,goodreliabilty,long life and reduce energy consumption;The frame adopts steel plate laser cutting,overall bending and finishing to ensurethe reliable operation of the needle selection system in the high-speedoperation environment. RANGE OF APPLICATION--------------------------------------------------------------------------- Matching with all kinds of trademark machines, water jet looms and rapier looms. It is suitable for tie,silk,towel and a variety of fabrics. TECHNOLOGY PARAMETER

TYPE	Length A (mm)	Width B (mm)	Height C (mm)	Weight (kg)
WMF1536Z	2758	1084	928	1600
WMF2816Z	3770	1055	1140	1800
WMF5376Z	4475	1055	1140	2600
WMF6144Z	4774	1084	983	2800

MACHINE'S PHOTO

---
