Heavy Duty PLC Control Automatic Stretch Film Pallet Wrapping Packing Machine

Product Details

Product Description

Product Description

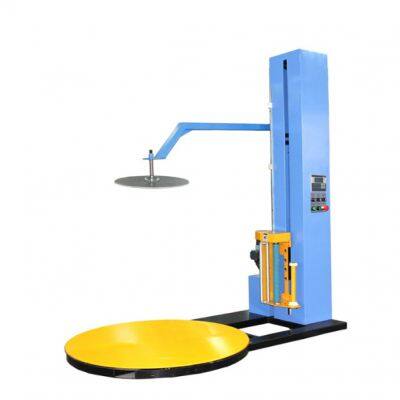

Heavy Duty PLC Control Automatic Stretch Film Pallet Wrapping Packing Machine
MACHINE APPLICATION
The pallet wrapping machine can be widely used in various industries to pack the goods on a pallet with LLDPE stretch film.
The pallet wrapper is especially suitable for large quantities of fast shipping or storage, strapping cartons, bottled items or bulky items. At the same time, it reduces labor intensity and improves packaging efficiency. It is an ideal equipment for modern enterprise product packaging.
MAIN PARAMETERS:
PLC is adopted for electrical control.
Can set special wrapping position reinforcement at random, can reset automatically.
Automatic working mode. Can also change to manual mode.
Indicator alarms automatically.
Photo electric for pallet height detecting.
Tension controlled by Magnetic controller.
Simple design, easy for operation and maintenance.
Manual operation, flexible& economical.
Can start,stop,reset freely.
Can set packing position reinforcement at random.
TECHNICAL PARAMETERS

Itemdata	TS-B (Auto)
Working mode	Auto (PLC)
Turntable motor	0.40KW
Up-down motor	0.37KW
Turntable speed	11r/min(adjustable)
Film carriage speed	2.9m/min
Turntable diameter	1500mm
Turntable height	110mm
Tension control	Magnetic controller
Height control	Photocell sensor
Turntable startstop mode	Soft start & Soft stop
Max load weight	1500KG
Max load height	2100mm
Wrapping material	Stretch film ID76mm,width:500mm
Power voltage	AC 380V/50HZ
Gross weight	About 800kg
Volume	About 4cbm

Note: the datas are only for reference, the machine can be custom designed according to specific object size.
Optional parts:
1. TOP PLATEN: for extra high or very light pallets, the goods on the pallet is easy to falling down during turntable turning. The top platen is used to press the top of the pallets to fix the position and avoid falling and shifting of the goods.
2. PRE-STRETCH DEVICE: Pre-stretch means the film is pre-stretched before wrapping the objects. It can ensure the stability when used for light or high package. It can make the pallet stable during wrapping. It can also save 30～50％ film than normal.
3. ACCESS RAMP: used for convenient loading&offloading of the pallet when transport by the manual fork-lift. It’s not necessary when the loading is by an electric forklift.
