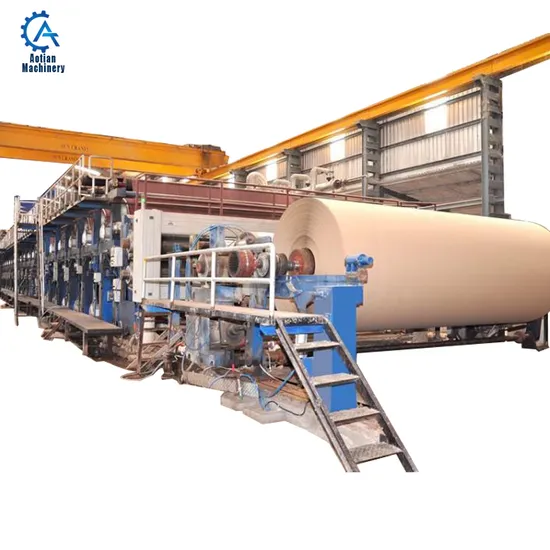

Waste Paper and Carton Recycling Machine for Duplex Board Corrugated Paper Making Machine

Product Description

Waste paper and carton recycling machine for duplex board corrugated paper making machine Product Description
This machine is used to make high-strength corrugated paper and testliner paper with a weight of 70-120g/m2. This machine consists of a fourdrinier section, a pressing section, a drying section, a transmission section, a base section, a hood section, a paper winding section and a rewinder.
1.The wire part adopts a single fourdrinier structure with a wire length of 23000mm
2.The pressing section adopts four-roller three-press compound pressing
3.The drying section uses 31pcs D1800mm drying cylinders + 6pcs D1500VAC cylinders
arranged in groups: (1+3/3+3/3+6+8+sizing machine+10)
4.The sizing machine adopts an oblique type (Φ1105mm/Φ1100mm)
5.Finishing department adopts horizontal paper winder with automatic roll warehouse
6.The transmission part adopts sub-transmission and AC frequency conversion speed control
The paper pulp raw material can be used waste paper, recycling board, books, cotton, wood, straw, sugarcane, wheat straw, rice straw,bamboo, reed, and other raw materials, they will be deal with to become good pulp for making paper.
Size Information

1	Raw material	Waste paper, Sugracan, bamboo, rice straw,bagasse
2	Output paper	Kraft paper, testliner paper, flutting paper
3	Net paper width	4000mm(customerized)
4	Capacity	200TPD(customerized)
5	Concentration of the internet	0.6%-0.8%
6	Paper weight	70-120g/m2
7	Design speed	600m/min
8	Working speed	500m/min
9	Transmission type	AC variable frequency drive division

Packing&Shipping
Products will packaged according to their shapes, weight, transport distance and transport modes. Large machines will be packaged in sections.every part export machinery will be in standard export package seaworthy wooden case waterproof film, straw rope, carton box etc.
After Sales Service
Before Purchase:
1.Help customers find the right product by professional technology and business consultation
2.Provide plans of the machines installation freely
3.Make customized products according to the clients requirements
4.Online for 24 hours
After purchase:
1.Fast and saft delivery
2.Assist our clients to bulid the equipment
3.Train the first-line operators on site
4.Regularly visit clients to solve production problems
5.Online for 24 hour
