Product Description
Product Description
Product Details

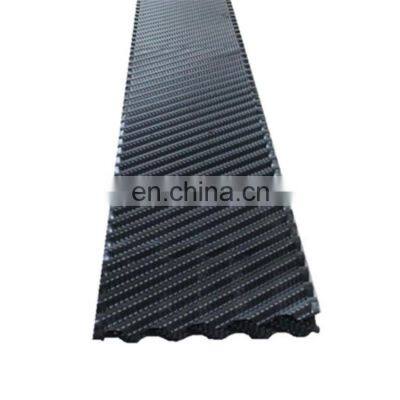

Cross corrugated PVC film pack fill Counterflow Film Fill honeycomb mediaA cooling tower is a heat rejection device that rejects waste heat to the atmosphere through the cooling of a water stream to a lower temperature. Cooling towers may either use the evaporation of water to remove process heat and cool the working fluid to near the wet-bulb air temperature or, in the case of closed circuit dry cooling towers, rely solely on air to cool the working fluid to near the dry-bulb air temperature. Then we need use the cooling tower fill to make the water temperature decrease.
The cooling tower size and shape will decide which kinds of fills will be used. Round cooling towers use the fill media with a round shape, square cooling towers use the square or rectangle shape. There is another special shape of the fill, such as the trapezoid shape fill,it can be used in square cooling tower too. About the cooling tower fill thickness, It ranges from 0.27mm to 0.5mm. Some people thought the thicker, the better. Considering the tower’s size and installation
method,we advise to use the suitable thickness. If the width is less than 1.22meter, we advise to use the thickness less than 0.38mm; if the thickness is more than 1.22meter, such as 1.52meter, we advise the thickness should be more than 0.38mm. It is like apaper. If the width is very large, the thickness should be thick enough to bear the weight and strength.
Cross corrugated PVC film pack fill Counterflow Film Fill honeycomb media
Cooling Tower Fill is one of the most important components for exchange of gas and water in cooling tower. It is the major parts to improve the efficiency of cooling tower and make sure the economy and safe operation. With the development of the plastic industry, countercurrent tower drench water plastic packing "W" shape ladder wave, obliquely wave, which has the heat dissipation ,good performance ,Ventilated small resistance, durable, based on the easy and other advantages, it is widely used in different types of large, medium, small, cooling tower.
Material
| Width
| Length
| Pitch
| Sample
|
PVC/PP
| 150mm, 305mm, 610mm, 915mm
| 1000mm,1200mm,1800mm,2400mm
| 12mm/15mm/19mm
| Free
|
Block PVC cooling tower fillTemperature shall be less then 65degree.
White PP cooling tower fillsTemperature shall be less than 80degree.
Product Introduction
Cross corrugated PVC film pack fill Counterflow Film Fill honeycomb mediaSome essentials features are:These are specially treated to offer maximum contact area for heat exchange.In it, the crossing of air and water streams is in close proximityThe proximity creates a diffused turbulence which is conducive to evaporation and efficient heat transfer.
Product Details Show
Product Processing
Product Packing
>>
