Flying Slitting Shear Cut to Length Line for Thin Plates

Product Description

Feature:
The cut-to-length line is a special equipment for flattening thin metal coils and cutting them into blocks. It is usually composed of a loading cart, decompiler, plate supporting, pressing and drawing device, main leveling machine, movable bridges, guiding and correcting device, measuring mechanism, lamination device, shearing machine, conveying table, pneumatic discharge rack, hydraulic lifting and stacking table, conveying roller table and hydraulic system, electrical control system, etc.The cut-to-length line is controlled by PLC. The main hydraulic, pneumatic, and electronic control components, measuring
system are selected international well-known brands.
This production line is mainly used to process cold-rolled carbon steel coil, stainless steel coil, and non-ferrous metal coil plates. If it is equipped with a six-high structured leveling machine, it can flatten and cut coil plates with high surface requirements, such as metal and aluminum.
According to customer requirements,the production line can be equipped with primary or fine leveling machines. The fixed length and shear feeding machinery can adopt common mechanical appliances, cooperative action, and digital frequency conversion technology or AC servo technology. The shearing machines can be an ordinary mechanical shearing machine, ordinary hydraulic shearing machines, high-speed brake shearing machines with an electromagnetic clutch, pneumatic clutch transmission power,movable shearing machines, and rotary flying shearing machines. After the production line is equipped with related forming machine tools,it can have a wider range of functional extensions.

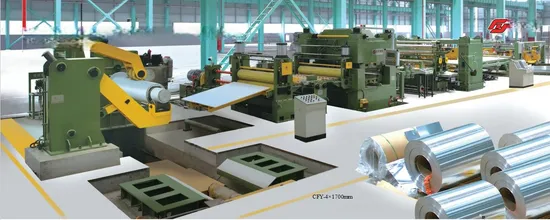

The above picture is all machines for this: flying shear cut to length line for thin plate
they are:
1) Decoiler
2) Leveling machine
3) Flying shear
4) Cruciform servo stacking machinery
5) Electrical cabinet
Parameter of Flying Shear Cut to Length Line for Thin Plates

Model	650 800		800	1250 1600 1800 2000 2200
Raw Coil			,, Cold-rolled steel 0.5mm-3mm 800mm(MAX) 10ton(MAX) ±0.3mm	,, coil,Galvanized coil,Co 0.3mm-2.3mm 1250mm(MAX) 20ton(MAX ±0.3mm	lor-coated coil,Stainless 0.5mm-3mm 1600mm(MAX) 20ton(MAX)	steel coil,Aluminum etc. 0.5mm-3mm 0.5mm-3mm 0.5mm-3mm
Coil Thickness	0.2mm-2.3mm 0.2mm-2.3mm
Coil Width	650mm(MAX) 8ton(MAX)	800mm(MAX) 10ton(MAX)				1800mm(MAX) 20ton(MAX)	2000mm(MAX) 20ton(MAX)	2200mm(MAX) 20ton(MAX)
Coil Weight
Shearing Accuracy	±0.3mm ±0.3mm				±0.5mm	±0.5mm ±0.5mm ±0.5mm
Operating Speed	80m/min(MAX) 80m/min(MAX)		80m/min(MAX)	60m/min(MAX)	60m/min(MAX) 60m/min(MAX) 60m/min(MAX 60m/min(MAX)

Model	400	800	800	1250	1600	1800
R aw C o i l	, , , , Cold-rolled steel coil,Galva nized coil,Color-coated coil,Stainless steel coil,Aluminum etc.
Coil Thickness	0.2mm-2.0mm 0.2mm-2.3mm		0.5mm-3mm	0.3mm-2.3mm	0.5mm-3mm	0.5mm-3mm
Coil Width	400mm(MAX 800mm(MAX)		800mm(MAX)	1250mm(MAX)	1600mm(MAX)	1800mm(MAX)
Coil Weight	5ton(MAX) 10ton(MAX)		10ton(MAX)	20ton(MAX)	20ton(MAX	20ton(MAX)
Shearing Accuracy	Cutting±0.3mmAcc/decelerate±0.4mm
Shearing Speed	200cuts/min 160cuts/min		120cuts/min	120cuts/min
Operating Speed	70m/min-90m/min			80m/min

---
