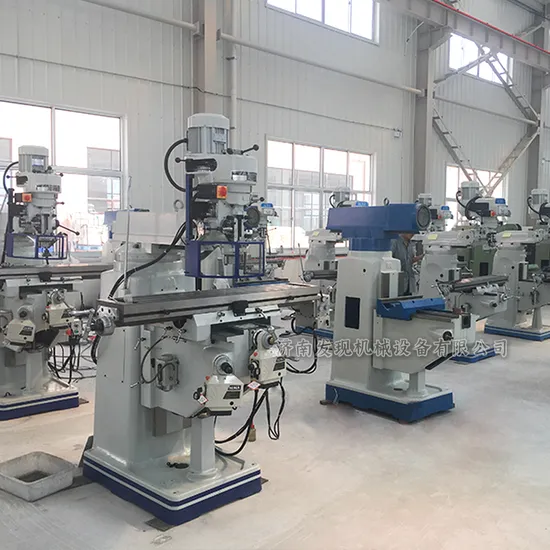

High Speed Easy to Operate Multi-Purpose Universal X6325 Turret Vertical Turret Milling Machine

Product Description

Product Description
X6325 - Rectangular guideways on Y, Z axes with good rigidity,
X6323A - Dovetail guideways on Y, Z axes,
X6325B - Rectangular guideway on Y axis, and dovetail guideway on Z axis,
Hardened and ground table surface and guideways with precision ground,
Milling head adopts 3HP motor, 16 steps speed pulley head, variable speed head is optional.

Specifications
Model	X6325	X6325A	X6325B
Table size	254×1270 (10"×50") 254×1370 (10"×54")
Table longitudinal travel	850mm 950mm
Cross travel	420mm	400mm	400mm
Vertical travel	420mm
T-slot Number/Width	3-16mm
Ram travel	470mm
Distance from spindle nose to table surface	0~405mm
Distance from spindle center to column	140~609mm
Spindle taper	standard: R8, optional: ISO30 / ISO40
Spindle travel	127mm
Spindle speed	50HZ: 65~4500rpm, 60HZ: 80~5440rpm
	optional: variable 65~4200rpm
Spindle feed	0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution
Spindle motor power	2.25KW / 3PH
Head swivel	90°
Head tilting	45°
one miller per case	1516×1550×2080mm
two miller per case	1650×1750×2170mm
three miller per case	1650×2285×2235mm
Machine weight	1550kg	1380kg	1420kg

Company Profile
Shandong Vedon Intelligent Equipment Co., Ltd. is a comprehensive industrial and trade enterprise in China who is specialized in metal cutting machinery and tools,coming with self import and export rights.
Shandong Vedon Intelligent Equipment Co., Ltd. supply a wide range of products and service to its global customers, including vertical machining center, milling machine, radial drilling machine, vertical drilling machine, lathe, CNC lathe, HSS&TCT annular cutter, magnetic drill machine, band saw machine and non-sparking tools etc... They are widely sold to more than 50 countries and areas in Europe,America, and Aisa, relying on the reliable product quality, reasonable price and good after-sales service system.
Shandong Vedon Intelligent Equipment Co., Ltd. follows the concept of credit management cooperation and win-win strategy, and it has good comments from society and clients.
Here we sincerely hope to cooperate with you and create a bright future.
Our Advantages
Certifications
FAQ
Q1. Could I put my LOGO on it or paint my own color?
A: Yes, As long as the order quantity reach to the MOQ.
Q2. What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3. Could I order trail small order?
A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4. What points need to be confirmed before placing the order?
A: Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.

---
