Product Description
Product Description
Key attributesIndustry-specific attributesNumber of Pole
2
Rated Voltage
277-480V
Max Discharge current
10000
Other attributesPlace of Origin
Guangdong, China
Model Number
ZYS-P10H
Nominal Discharge current
5000
Rated working voltage/Un(VAC)
249-510V
Maximum working voltage/MCOV/Uc(VAC)
510V
Rated load current/IL(A)
5A
Nominal discharge current/In(kA)
5KA
Maximum discharge current/Imax(kA)
10KA
Surge impulse voltage/Uoc
10KV
Voltage protection level/Up(V)
L-N,L-G/PE,N-G/PE≤1.5KV
power supply system
TN
Waterproof grade
IP62
work environment
-40℃~+85℃
Packaging and deliveryPackaging Details
Carton Package
Port
Yantian Port
Supply AbilitySupply Ability
5000000 Piece/Pieces per Year
Product Description
Overview

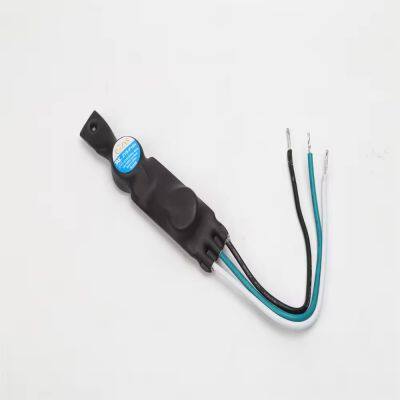

ZYS-P10H series surge protector is a transient over-voltage protection device specially used for outdoor LED lighting system. It is mainly composed of thermal protection varistor and gas discharge tube device. It can be installed in LED lamp or perpetual lamp and connected with LED power driver to provide reliable surge protection. It can effectively prolong the service life of lamps and improve the stability of lamps and lanterns.
Product Paramenters
Features* Applicable to class I or II lamps
* Built in protection mode: L-N, L-PE,N-PE
* Built in thermal separation function for higher security
* Parallel isolation design, excellent protection performance
* Excellent surge resistance and very low residual voltage
* Double green cable andwire
* The product is small and convenient for embedded installation
* IP62 dust proof and waterproof grade
Specification
Rated working voltage/Un（VAC）
| 249-510V
|
Maximum continuous working
voltage/MCOV/Uc（VAC）
| 510V
|
Rated load current/IL(A)
| 5A
|
Nominal discharge current/In(kA)2
| 5KA
|
Maximum discharge current/Imax（kA）
| 10KA
|
Surge impulse voltage/Uoc（KV）
| 10KV
|
Voltage protection level/Up(V)
| L-N,L-G/PE,N-G/PE≤1.5KV
|
power supply system
| TN
|
Waterproof grade
| IP62
|
work environment
| -40℃~+85℃
|
>>
