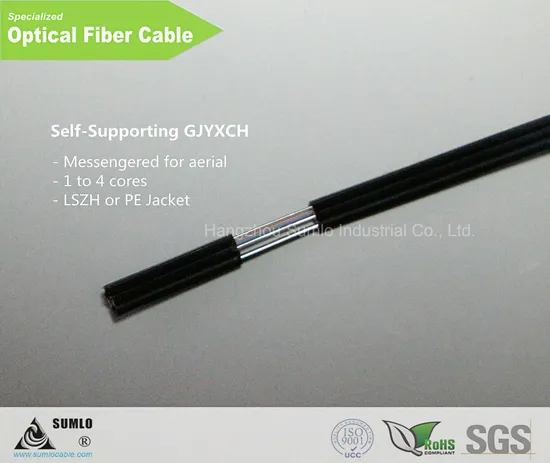

Self-Supporting Messengered FTTH Optical Fiber Cable (GJYXCH, GJYXFCH)

Product Description

Self-supporting Messengered FTTH optical fiber cable (GJYXCH,GJYSFCH)
Feature:
1. Simple structure, light weight and high tensile strength
2. FRP or Steel wires strength member.
3. Novel groove design, easily strip and splice, simplify the installation and maintenance.
4. Low smoke, zero halogen and flame retardant sheath, environment-friendly, good Safety
5. Self-supporting messengered optional.

Laying mood:
Indoor, FTTH Drop line .
Self-supporting messengered Butterfly drop fiber cable for FTTH Network (GJYXCH,GJYXFCH)

Number of cores		1 to 4
Fiber Model		G657A, G.652D
Support member	Material	Steel Wire or Stranded steel wire
	Diameter(±0.03)mm	1.0 or 7/0.33
Strength Member	Material	FRP (GJYXFCH) Steel Wire (GJYXCH)
	Diameter(±0.03)mm	1.0 or 0.4
	Numbers	2
Outer Sheath	Material	LSZH or PE
	Color	White/black
Cable Diameter(±0.2)mm		2.0×5.2
Cable Weight(±2)kg/km		20

* G652.D and G657A1, G657A2 single mode optical fiber should be put in cable

---
