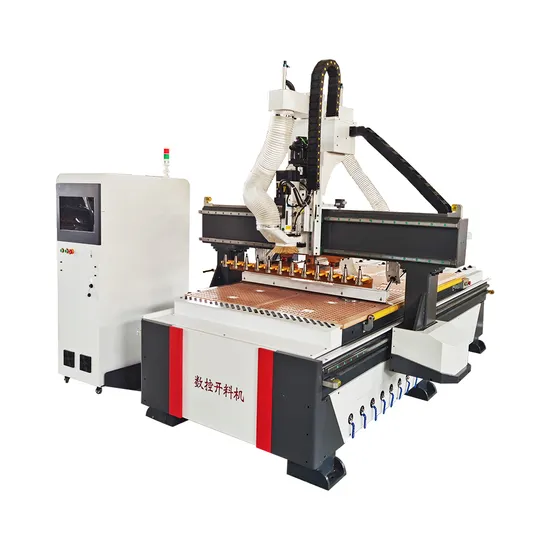

1325 Woodworking Furniture 3D Engraving and Cutting Machine Atc CNC Router Machine

Product Description

Application Industry
gathering craftsmanship
·Suitable for the production of various panel furniture and complex door processing.
·For example: cabinet, closet, cabinet door, wooden door, closet door, sliding door, wine cabinet, shoe cabinet, tatami bed, panel furniture, solid wood furniture, office furniture engraving,milling, cutting, punching, etc.

Closet doors Wine cabinet Cabinet doors
Panel Furniture Shoe cabinet Tatami Beds
Product Parameters

product model	1325 inline tool change cnc router
processing area	1300*2500mm
running speed	running speed 0-100m/min; processing speed 15m-30m/min
spindle power	9kw tool changer spindle, 3000-24000 rpm
operating system	optinal Taiwan LNC or Taiwan SYNTEC system
driver system	high speed and high torque servo motor (Inovance servo motor, Leadshine servo motor, Delta servo motor, Yaskawa servo motor optional)
reducer	Japan Shimpo reducer or Germany Newgear reducer
transmission parts	German rack and pinion, Taiwan brand guide rail
table form	special design structure, super vacuum adsorption table, thickened table structure, high level and no deformation.
parts	7.5/11kw vaccum pump, 4kw double tube high power dust collector.
wire standard	10 square 4 core copper wire for machine/6 square 4 core copper for vaccum dust collector pump.

Machine Features
source manufacturer·support customization
1.CNC Row tool changing machining center with a 9kw tool changing spindle and 12-20 row tool changgers.
2.Can meet a variety of panel processing production, a variety of complex door panel engraving processing. Realize one machine with multi-purpose and high cost performance.
3.It can be equipped with double stations or automatic loading and unloading device to further improve the work efficiency.
4.Vacuum adsorption table, with a large adsorption force of the vacuum pump, automatic plate positioning, to improve efficiency.
Strict Details
craftsmanship quality·carefully created
1 Machine Warning Light
Material using ABS engineering plastic, LED light source, lone life, high strength, good toughness, high temperature resistance, corrosion resistance, etc.; if the air pressure is lower than 0.6 MPA warning light will emit a beeping sound to protect the accessories from damage.
2 Electric Oiling Pump

It is mainly for lubrication of moving parts such as guide rails and screw, which greatly improves the service life, without manual operation, automatic lubrication at regular intervals, low noise and high efficiency.
3 Oil Divider
Adopting volumetric oil row, it can deliver lubricating oil to each lubrication point according to the specified amount without manual adjustment, so that all sliders can get equal amount of lubricating oil with good lubrication effect.
4 Cable Wire
The machine adopts double sheath high flexible shielded cable. The outer side adopts flame retardant PVC sheath. The shielding layer adopts tinned shielding mesh. With reinforced anti-pulling rope inside. Strong abrasion resistance, good water resistance, and anti-pulling off.
5 Hand Wheel
Hand wheel with spiral wire with shield wire, anti-slip pattern, waterproof and oil-proof, strong anti-interference ability, long distance transmission, shell material wear-resistant and fall-resistant, waterproof and dust-proof.
6 Integrated Direct Mount
The ball screw and servo motor mounting parts are integrated, and this structure can effectively reduce the error between the two axis. Concentricity is high and will not deviate from the center. Effectively avoid the phenomenon of broken shaft of the screw and broken coupling. The motor mount is made of high quality medium carbon steel, which is impact resistant and durable.
7 Voltage Protector
Can set overvoltage value, undervoltage value, action time. LED screen can display voltage value, fault status, record fault function. Protect the machine other electrical accessories from damage.
8 Relays
Brand relays mainly control the action of pneumatic components such as cylinders, and their service life is 5-10 times longer than that of ordinary relays.
9 Omron Limit
High output power, stable operation and long life. Rugged casing, high sensitivity, fast frequency response, and high repeat positioning accuracy.
10 Reducer
The reducer block is installed at the back of the reducer, which improves the stability of the reducer during operation and effectively avoids the gap between the tooth shaft and the rack at a later stage.
11 Inverter
The inverter adopts strong cooling fan, humanized control panel, energy saving and power saving, powerful, intelligent control, keeping constant voltage and long service life.
12 Machine Head
Adopt aviation aluminum material head, high strength, high hardness, good toughness, goos fatigue resistance, no grit, no deformation.
Packing&Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Shandong Laser Intelligent Equipment Co., Ltd. was established in 2018, specializing in the production and sales of various types of fiber laser cutting machines, fiber laser cutting machines for metal plates and metal pipes, exchange platform fiber laser cutting machines, fully enclosed fiber laser cutting machines, etc., as well as the production of laser welding machines, laser cleaning machines, plasma cutting machines and other equipment. Our products are widely used in industries such as automobile manufacturing, agricultural machinery, electrical chassis, kitchen cabinets, sheet metal fabrication, large heavy industries, medical equipment, fitness equipment, and advertising decoration.
FAQ
1. who are we? We are based in Shandong, China, start from 2018, sell to Domestic Market(34.00%),Africa(15.00%),Mid East(12.00%),Southeast Asia(10.00%),North America(9.00%),South America(8.00%),Western Europe(4.00%),Northern Europe(4.00%),Oceania(2.00%),Eastern Asia(2.00%). There are total about 51-100 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Laser Cutting Machine, Laser Welding Machine, CNC Router, ATC CNC Router, Vacuum Membrane Press Machine, CNC Plasma Cutting Machine 4. why should you buy from us not from other suppliers? 1.Have own export license 2.5 years manufacturer experience 3.Over 5 experienced technicianS speak frequently English 4.With CE,ISO,BV,SGS certificate 5.With more than 5 own designed patents 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
