Welcome to visit

Top Quality Super Fineness Bead Mill Ink Sand Mill for Dye Pigment Pesticide Sc Nano Grinding Mill Manufacturer

US$10,000.00
1-4 pcs
US$8,000.00
5+ pcs

Basic Info.

Model NO.
EDW-100
Application Area
Agricultural Chemicals
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Disc
Stirring Type
Diving
Working
High Speed Mixer
Function
Wet Grinding/ Milling
Grinding Medium
Zirconia Beads
Applicable Industry
Coating, Paint, Ink, Pigment, Latex
Materials
Stainless Steel or Pure Zirconia
Usage
Industrial
Product Type
Paint
Mixer Type
Agitator
Layout Type
Horizontal
Operating type
Continuous Operating
Warranty
3 Year
Transport Package
Wooden Case
Specification
EDW-5L----EDW-100L
Trademark
ELE
Origin
Shanghai, China
HS Code
8479820090
Production Capacity
200-2000L

Product Description

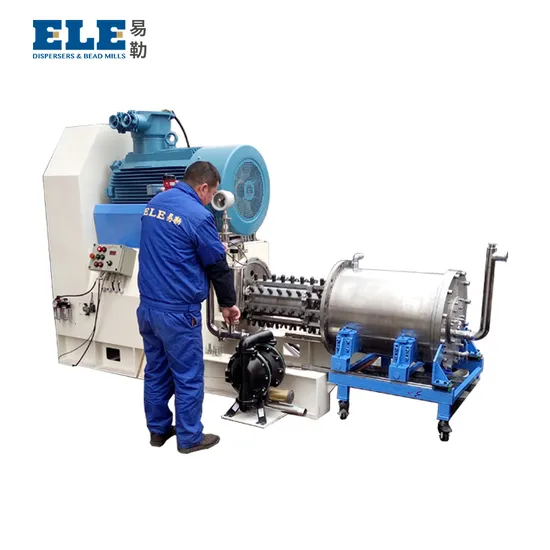

Super Fineness Bead Mill 100L Ink Sand Mill for Dye/pigment/pesticide SC Manufacturer
Model:EDW Series
Chamber volume:5/10/15/30/50/100L
Introduction:
It is widely used in the industry production of paint,color paste,printing ink,papermaking,adhesive,drugs,chemical industry etc.
To mix,dissolve,and disperse two or more kinds of liquids and solids.

Features:
Mechanical Seal:ELE adopt Cartridge Mechanical Seal, easy to install, with excellent sealing effect, much stronger, can withstand pressure above 10kg.
Centrifugal Separation Unit:ELE add a centrifugal separation unit after the discs, that makes the beads much well-distributed, so get narrow range of particle size and better fineness.
Efficient Discharging:Unique static tubular fence type seperation sieve with narrow gaps and large area, ensure the material discharging smoothly, meanwhile lessen the impact between beads and sieve, prolong the service life.
Technical Data:
Specifications:
Model Chamber
Volume
(ml)
Main Power
(kw)
Rotation Speed
(rpm)
Capacity
(L/h)
Dimension
L*W*H
(mm)
Weight
(kg)
EDW-5 5 7.5 1440 200 1300*1050*450 650
EDW-15 15 18.5 1440 500 1600*1450*650 1200
EDW-20 20 22 1260 800 1600*1450*650 1350
EDW-30 30 37 1260 1200 1650*1550*750 1700
EDW-40 40 45 980 1500 1750*1650*850 2100
EDW-50 50 55 980 2000 1900*1850*850 2300
EDW-100 100 110 860 3000 2300*2150*950 380

Detail Photos:
