Multi-Purpose Machine At300, It Can Lathe, Drill and Mill in Metal, Wood and Other Materials, Mini Combination Lathe

Product Description

Product description:
Technical parameter :
Feature:

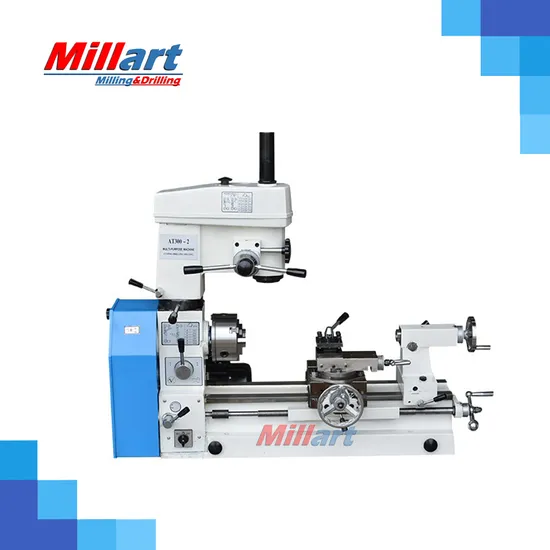

Multi-purpose machine AT300 It can lathe, drill and mill in metal, wood and other materials.

AT300 series has basically 3 specifications: -2, -4,
The differences between them are:
For-2, the length of tool carrier is 200mm;
For-4 the lengths of tool carrier are 425mm,
Technical parameter :

Model	AT300-2	AT300-4
Max.swing diameter over bed	300mm
Max.length of work piece	470mm
Max.swing diameter over tool carrier	140mm
Spindle bore	26mm
Taper of hole in spindle morse	NO.4
Max.cross stroke over tool carrier	160mm
Max.longitudinal stroke over small tool carrier	80mm
Metric thread kinds on processing	14
Metric thread pitch on processing	0.5-3mm
Inch thread kinds on processing	20
Inch thread pitch on processing	11-40 1/n"
Longitudinal feed on spindle tool carrier	0.075-0.15/r
Max.stroke on taper hole	40mm
Taper of hole in tailstock	NO.3
Spindle speed step	6
Spindle speed scope	160-1600r/min
Max.drilling capacity	15mm
Distance from bench to spindle nose	170-250mm
Distance between spindle center and column	175mm
Swivel-angle of headstock around the column	360
Spindle speed step	12
Spindle speed scope	125-1600r/min
Bench dimension	200*150	425*150
Taper of hole in milling spindle morse	No.3
Stroke on spindle hole	80mm
Electric motor	0.55kw
Net weight	160kg	180kg
Overall dimension	1160*580*600

Standard accessories:
3-Jaw chuck
Dead centers
Allen wrench
Single open end wrench
Double open end wrench
Drill chuck arbor
Tapered drift
Drill chuck
Optional accessories:
Steady rest
Follow rest
Face plate
flat nose plier
Turning tool set
Face milling cutter
Step block
