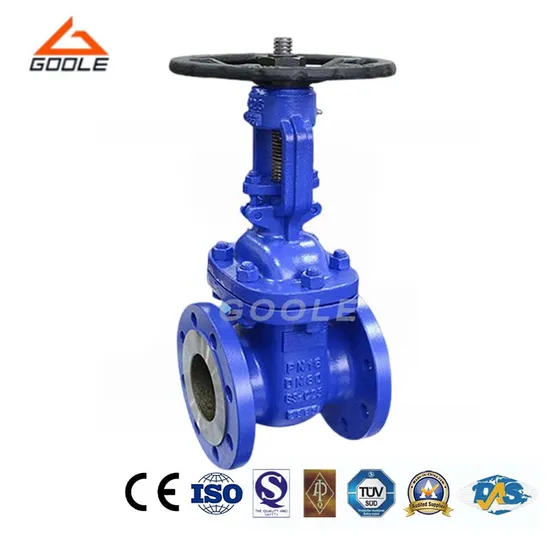

DIN3202 F4/F5/F7 Gate Valve- Pn16/Pn25/Pn40 Flanged Ends GS-C25 Rising Stem Gate Valve

Product Description

DIN3202 F4/F5/F7 Gate Valve- Pn16/Pn25/Pn40 Flanged Ends GS-C25 Rising Stem Gate Valve Product Description
Product Features DIN3202 F4/F5/F7- PN16/PN25/PN40 Flanged Carbon Steel Gate Valve:
(1) Design Standard: DIN EN12288-2003
(2) Face to Face Dimension: DIN EN588-1:1995
(3) End Flange Dimension: DIN EN1092-1:2002
(4) Structures: B.B, OS&Y (Rising Stem)
(5) Material of Body: G.G, GS-C25, S.S 304, S.S 316
(6) Pressure Rating: PN16
(7) Test Standard: DIN EN12266:2003
Specification

Specification
Design Standard: DIN3352
Face to Face: DIN3202 F5(PN16~PN25) ,DIN3202 F7(PN40~PN100),DIN3202-F8(PN160)
Testing Conform to DIN3230
Flange Ends : DIN2532,DIN2533,DIN2534,DIN2535,DIN2543,DIN2544,DIN2545,DIN2546,DIN2547,DIN2548

Product Details

Body	GS-C25												1.4308
Disc	CG-C25				1.4308				1.4408		Monel
Stem	13Cr				1.4308				1.4408		Monel		F304
Wedge Disc Sealing Face	13Cr	13Cr	STL		1.4308		STL		1.4408	STL	Monel		1.4308		1.4308		STL
Seat Ring Swaling Face	13Cr	STL	STL		1.4308		STL		1.4408	STL	Monel		1.4308		STL		STL
Body	1.4408					1.4308						1.4301
Disc
Stem	1.4408					1.4308						1.4301
Wedge Disc Sealing Face	1.4408	1.4408		STL		1.4306		1.4306		STL		1.4301		1.4301		STL
Seat Ring Swaling Face	1.4408	STL		STL		1.4306		STL		STL		1.4301		STL		STL

Product Parameters DIN3352 GATE VALVE - DIN3202-F5

Pressure (MPa)		PN1.6MPa - Flange Ends :DIN2543
Size	Mm	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L		250	270	280	300	325	350	400	450	500	550	600	650	700	800
H		417	452	530	607	720	790	885	1014	1190	1350	1460	1630	1800	2200
W		200	280	280	300	350	350	400	450	500	600	600	650	700	800
Weight(Kg)		16	25	30	55	75	95	150	245	353	400	750	958	1063	1390
DIN3352 GATE VALVE - DIN3202-F5
Pressure (MPa)		PN2.5MPa - Flange Ends :DIN2544
Size	Mm	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L		250	270	280	300	325	350	400	450	500	550	600	650	700	800
H		417	452	530	607	720	790	885	1014	1190	1350	1460	1630	1800	2200
W		200	280	280	300	350	350	400	450	500	600	600	650	700	800
Weight(Kg)		16	31	43	58	82	103	180	265	385	547	835	1050	1130	1500

DIN3352 GATE VALVE - DIN3202-F7

Pressure (Mpa)	PN 4.0 Mpa - Flange Ends :DIN2545
Size	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L	250	290	310	350	400	450	550	650	750	850	950	1050	1150	1350
H	404	456	604	607	720	780	875	1260	1480	1605	1788	1956	2168	2601
W	200	280	300	350	350	400	450	500	500	600	650	700	700	800
Weight(kg)	18	32	47	60	95	130	220	290	490	760	900	1250	1450	1700

DIN3352 GATE VALVE - DIN3202-F7

Pressure (Mpa)	PN 6.4 Mpa - Flange Ends :DIN2546
Size	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L	250	290	310	350	400	450	550	650	750	850	950	1050	1150	1350
H	404	456	604	607	720	780	875	1260	1480	1605	1788	1956	2168	2601
W	200	280	300	350	350	400	450	500	500	600	650	700	700	800
Weight(kg)	20	35	52	66	103	140	230	300	510	780	940	1300	1600	1850
