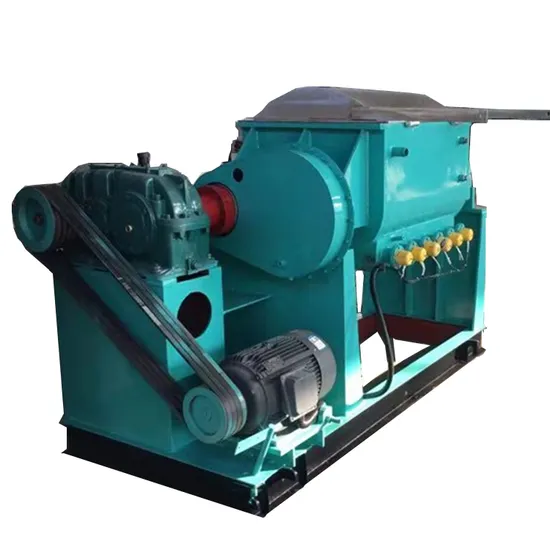

Hydraulic Tilting Double Z Arm Mixer Electric Heating Jacketed Dual Sigma Blade Kneading Mixer

Product Description

Product Description
1. Uses:
Sigma Mixer is widely applied to produce high-viscosity sealant, silicone rubber, neutral and acidic glass cement, chewing gum, bubble gum, paper pulp, and cellulose, and is also used in batteries, ink, pigments, dyes, pharmaceuticals, resins, plastics, rubber, cosmetics, and other industries.
2. Working Principle:
Sigma Mixer is used to knead, mix, crush, disperse and re-polymerize high-viscosity paste or elastoplastic materials, which can not be processed by available powder mixers and liquid blenders.
Sigma Mixer is the ideal equipment for all kinds of chemical products and has the merits of stirring evenly, kneading efficiently, and having no dead corners. The materials are scraped, stretched, folded, and squeezed among the blade, slot wall, and ridge-like protrusions.
The materials cycle from one end of the impeller to the other. The two mixing paddles are tangent and spin at different speeds to complete the kneading process.
3. Category:
There are four kinds of Sigma Mixer: Vacuum kneader, pressure kneader, atmospheric pressure kneader, and high-temperature kneader.
It has three ways of discharging: Hydraulic tilting, ball valve, and screw extrusion. Characteristics
1. PLC control and record the temperature, time, viscosity, and other relevant data in real time during production.
2. To ensure product quality, the parts of the cylinder and the blade that are in contact with the materials are made of stainless steel.
3. The kneader can be used for the high-viscosity paste or plastic solid with poor mobility around 5000 Pa·s, and the jacket can be heated or cooled by heat transfer oil or water.
4. According to the unique needs, the plant can be designed to operate in a vacuum.
5. The speed difference between two shafts is 7.52r/min so the material is constantly changed, fastly mixed, and has a larger transfer area for unit volume.
The hydraulic tilting discharge type kneader is mainly composed of mixing and kneading part, machine base part, hydraulic system, transmission system, electric control system, heating system(optional), cooling system(optional), vacuum system(optional).
Product Parameters

Model(L)	NH-5		NH-10		NH-50	NH-100	NH-200	NH-300	NH-500	NH-1000	NH-1500	NH-2000	NH-3000	NH-4000	NH-5000		NH-6000
Volume(L)	5		10		50	100	200	300	500	1000	1500	2000	3000	4000	5000		6000
Steam pressure(Mpa)	0.34		0.34		0.34	0.34	0.34	0.34	0.34	0.34	0.34	0.34	0.34	0.34	0.34		0.34
Hot oil circulation(Mpa)	0.5		0.5		0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5		0.5
Electric heating(Kw)	1.5		2		3-6	4-11	6-15	6-18	12-24	18-36	32-45	/	/	/	/		/
Fast rpm	60		45		35	36	36	40	30	35	40	35	32	30	35		35
Slow rpm	Speed ratio 1.0-1.9 as option, according to materials features.
Main motor (Kw)	0.55-1.5	0.75-2.2		1.5-3		4-11	5.5-15	5.5-18	11-45	18.5-75	22-90	45-160	55-190	75-250	90-225	90-225
Vacuum	≤-0.094Mpa
Discharge	1.Manual(for small capacity) 2.Bottom ball valve 3.Electric tilting 4.Screw extruding

Notes:
(1) Our company can design the equipment according to the user's specific requirements.
(2) For the last update of the technology, we will change the technical data without notice, and the correct parameters are subject to the real product.
(3) If you are unsure which type to choose, please call us, and our professional sales engineers will recommend one for you. FAQ
