Xvr 4CH 8CH 4K Mini Wizsense Security Camera Digital DVR Price Dahua Network Video NVR Recorder{Xvr7104he-4K-I3/Xvr7108he-4K-I3}

US$122.00-188.00 1 Piece (MOQ)

Basic Info.

Model NO.
XVR7104HE-4K-I3/XVR7108HE-4K-I3
Interface Type
BNC/VGA/HDIM
Video Input/Output
4/8/16
Remote Control
Without Remote Control
Audio Compression
G.711A
USB
2*USB2.0
Max HDD
1×6tb
Transport Package
Paper Box
Specification
255(L)* 236mm(W)* 44mm(H)
Trademark
OEN
Origin
China
HS Code
8529904900
Production Capacity
10000PCS/Month

Packaging & Delivery

Package Size
40.00cm * 32.00cm * 15.00cm
Package Gross Weight
2.100kg

Product Description

Product Description XVR 4Ch 8Ch 4K Mini WizSense Security Camera Digital DVR Price Dahua Network Video NVR Recorder{XVR7104HE-4K-I3/XVR7108HE-4K-I3}
XVR7104HE-4K-I3 4 Channels Penta-brid 4K Mini 1U 1HDD WizSense Digital Video Recorder
> H.265+/H.265 dual-stream video compression.
> Supports 4-channel AI-Coding.
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
> Max 8 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth.
> Up to 4 channels video stream (analog channel) perimeter protection.
> Up to 4 channels video stream (analog channel) SMD plus.
> Up to 2 channels video stream (analog channel) human face recognition.
> IoT & POS functionalities.
System
Main Processor
 Industrial-grade processor
Operating System
 Embedded Linux
Operating Interface
 Web; Local GUI
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)
 Advanced Model: 2 channels, 10 IVS for each channel
General Model: 4 channels, 10 IVS for each channel
Face Detection
Face Attributes
 Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels)
 2 channels (up to 12 face images/s each channel)
Face Recognition
Face Database Capacity
 Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image
Face Recognition Performance of AI by Recorder (Number of Channels)
 2 channels
SMD Plus
SMD Plus by Recorder
 4 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input
 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input
 1. CVI: 4K@25/30 fps; 6 MP@20 fps; 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.
2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input
 Up to 8 channels of IPC access
4 IP channels by default + 4 channels (analog channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding Capacity
 Main stream: 4K@(1fps-15 fps); 6 MP@(1fps-20 fps); 5 MP, 4K-N,4 MP,3 MP, 1080p, 720p, 960H, D1, CIF@(1fps-25/30fps)
Sub stream: 960H@(1fps-15fps);D1,CIF@(1fps-25/30fps)
Dual-stream
 Yes
Video Bit Rate
 32 kbps-8192 kbps
Audio Sampling
 8 kHz, 16 bit
Audio Bit Rate
 64 kbps
Video Output
 1 HDMI, 1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
Multi-screen Display
 When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/8/9
Third-party Camera Access
 ONVIF; Panasonic; Sony; Axis; Arecont; Samsung
Compression Standard
Video Compression
 AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression
 G.711a; G.711u; PCM
Network
Network Protocol
 HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone Access
 IOS; Android
Interoperability
 ONVIF 21.12; CGI
Browser
 Chrome, IE9 or later, Firefox
Network Mode
 Single-address mode
Recording Playback
Record Mode
 General, motion detection; intelligent; alarm; POS
Recording Playback
 1/4
Backup Method
 USB device and network
Playback Mode
 Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Alarm
General Alarm
 Motion detection; video loss; tampering; local alarm
Anomaly Alarm
 No disk; storage error; disk full; camera offline; IP conflict; MAC conflict
Intelligent Alarm
 Face detection; face recognition; perimeter protection
Alarm Linkage
 Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email
Ports
Audio Input
 4-channel RCA
4-channel BNC (Coaxial Audio)
Audio Output
 1-channel RCA
Two-way Talk
 Yes (share the same audio input with the first channel)
Alarm Input
 8 channels
Alarm Output
 3 channels
HDD Interface
 1 SATA port, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature.
RS-485
 1 port, for PTZ control
USB
 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI
 1
VGA
 1
Network Port
 1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply
 DC 12V, 2A
Power Consumption
 <10 W (without HDD)
Net Weight
 1.20 kg (2.65 lb)
Gross Weight
 1.90 kg (4.19 lb)
Product Dimensions
 325.0 mm × 254.3 mm × 55.0 mm (12.80'' × 10.01'' × 2.17'') (W × D × H)
Packaging Dimensions
 372.0 mm × 117.0 mm × 308.0 mm (14.65'' × 4.61'' × 12.13'') (W × D × H)
Operating Temperature
 -10 °C to +55 °C (14 °F to +131 °F)
Operating Humidity
 10%-90% (RH)
Installation
 Rack or desktop
Certifications
 CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B

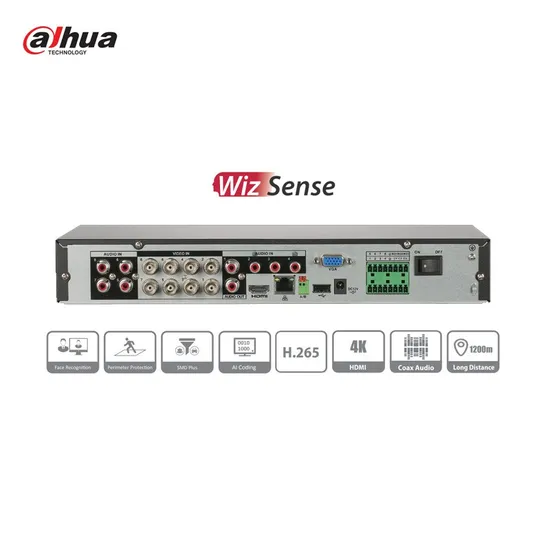

XVR7108HE-4K-I3 8 Channels Penta-brid 4K Mini 1U 1HDD WizSense Digital Video Recorder
> H.265+/H.265 dual-stream video compression.
> Supports 8-channel AI-Coding.
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
> Max 16 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth.
> Up to 8 channels video stream (analog channel) perimeter protection.
> Up to 8 channels video stream (analog channel) SMD plus.
> Up to 2 channels video stream (analog channel) human face recognition.
> IoT & POS functionalities.
System
Main Processor
 Industrial-grade processor
Operating System
 Embedded Linux
Operating Interface
 Web; Local GUI
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)
 Advanced Model: 2 channels, 10 IVS for each channel
General Model: 8 channels, 10 IVS for each channel
Face Detection
Face Attributes
 Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels)
 2 channels (up to 12 face images/s each channel)
Face Recognition
Face Database Capacity
 Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image
Face Recognition Performance of AI by Recorder (Number of Channels)
 2 channels
SMD Plus
SMD Plus by Recorder
 8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input
 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input
 1. CVI: 4K@25/30 fps; 6 MP@20 fps; 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.
2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input
 Up to 16 channels of IPC access
8 IP channels by default + 8 channels (analog channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding Capacity
 Main stream: 4K@(1fps-15 fps); 6 MP@(1fps-20 fps); 5 MP, 4K-N,4 MP,3 MP, 1080p, 720p, 960H, D1, CIF@(1fps-25/30fps)
Sub stream: 960H@(1fps-15fps);D1,CIF@(1fps-25/30fps)
Dual-stream
 Yes
Video Bit Rate
 32 kbps- 8192 kbps
Audio Sampling
 8 kHz, 16 bit
Audio Bit Rate
 64 kbps
Video Output
 1 HDMI, 1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
Multi-screen Display
 When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
Third-party Camera Access
 ONVIF; Panasonic; Sony; Axis; Arecont; Samsung
Compression Standard
Video Compression
 AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression
 G.711a; G.711u; PCM
Network
Network Protocol
 HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone Access
 IOS; Android
Interoperability
 ONVIF 21.12; CGI
Browser
 Chrome, IE9 or later, Firefox
Network Mode
 Single-address mode
Recording Playback
Record Mode
 General, motion detection; intelligent; alarm; POS
Recording Playback
 1/4/9
Backup Method
 USB device and network
Playback Mode
 Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Alarm
General Alarm
 Motion detection; video loss; tampering; local alarm
Anomaly Alarm
 No disk; storage error; disk full; camera offline; IP conflict; MAC conflict
Intelligent Alarm
 Face detection; face recognition; perimeter protection
Alarm Linkage
 Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email
Ports
Audio Input
 8-channel RCA
8-channel BNC (Coaxial Audio)
Audio Output
 1-channel RCA
Two-way Talk
 Yes (share the same audio input with the first channel)
Alarm Input
 8 channels
Alarm Output
 3 channels
HDD Interface
 1 SATA port, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature.
RS-485
 1 port, for PTZ control
USB
 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI
 1
VGA
 1
Network Port
 1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply
 DC 12V, 3A
Power Consumption
 <15 W (without HDD)
Net Weight
 1.40 kg (3.09 lb)
Gross Weight
 2.10 kg (4.63 lb)
Product Dimensions
 325.0 mm × 254.2 mm × 55.0 mm (12.80'' × 10.01'' × 2.17'') (W × D × H)
Packaging Dimensions
 372.0 mm × 117.0 mm × 308.0 mm (14.65'' × 4.61'' × 12.13'') (W × D × H)
Operating Temperature
 -10 °C to +55 °C (14 °F to +131 °F)
Operating Humidity
 10%-90% (RH)
Installation
 Rack or desktop
Certifications
 CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
Company Profile
PAIZE TECHNOLOGY LIMITED was founded in 2015, we have the professional sales and technical support team in Hangzhou. Since established, we are always focusing on the distribution of security products, and cooperate with the top3 manufacturer in security field. Our business covers many countries including Europe,
Africa,America, Asia, Australia, and so on.
The products we sell include DVRs, NVRs, IP cameras, HDCVI cameras, and so on. All the products we providing are original international versions and OEM orders are also welcome.
We will make great efforts to offer excellent pre-sales, sales, and after-sales service.
We adhere to the principle of "Customer Upmost, Service First" We are sincerely looking forward to your cooperation!

FAQ Q: How to confirm whether the product is Dahua's genuine English version?
A: You can download software from the official website of Dahua.Only Dahua's genuine product is compatible with the software. And we promise all of our products are Dahua genuine products.
Q: When will you ship my order?
A: For those in stock, we will ship orders within 1-5working days once we get a confirmation for payment
For those out of stock, delivery time is around one month
Q: Can l install the IP camera by myself?
A: Of course the camera is flexible and installed. And there is a user manual in the box.
Q: What's your payment method?
A: We accept T/TWesternUnion, MoneyGram, and Paypal
Q: Do you support drop shipping?
A: Yes, your drop shipping is available
Q: How about a warranty?
A: Three years warranty and you can contact us for any technical problems. Our technicians will support you in 24 hours.

>> QNix® 5500 advanced coating thickness measurement
>> conductive GARBAGE BIN esd container
>> Globally Trusted Brand Hydraulic Big 6ton 7 Ton 10 Ton Tired Excavator Mini Mobile Excavator with Accessories for Home Use
>> U-Cup Nonstandard Ultra Large Size Turned Machined Hydraulic Cylinder Seal Piston Rod Shaft Seal Dia3000mm Mdi
>> Wholesale Baseball Uniform Design Custom Cheap Sublimated Softball Baseball Jersey
>> Fashion Design Metalized Aluminum Metallic Paillette Fabric
>> Wholesale Customized Weld On Type mechanical hinges
>> Sit Up Bar Suction Floor Exercise Stand Padded Ankle Support Home Gym
>> HC-S028 Senior infant CPR mannikin cardiopulmonary resuscitation simulator/manniquin/training model
>> Brand New Men’s Motor Racing Shirt Made To Order From 2022 Best Supplier.
>> Q8 Tws Wireless Business Headphones 9d Stereo Earbuds Headsets With Microphone Waterproof Noise Cancelling Earphones
>> Eco-Friendly Promotional Foldable Non-Woven Tote Shopping Bags
>> Easy Installation Waterproof Coextrusion WPC Wood Composite Wall Panels for Outdoor
>> Acrel BA series din rail AC residual current transducer 24V
>> Hr32-Bt 1d/2D Barcode Scanning Intelligent Portable Wireless Scanner
>> Vertical Drilling Milling Machine Zx6350c
>> CNC Woodworking Engraving Machine Automatic Furniture Cabinet Door Cutting Machine
>> Durable High-Speed Bottle Cleaning Machine for Heavy-Duty Use
>> 4L0698007A,L0698007B,4L0698007C Air Suspension Compressor Pump For Audi Q7 2006-2015 VW Touareg 2003-2010
>> Durable Reliable Msa Altair 2X Toxi Gas Detector for H2s Detecting Gas Leak Detector
