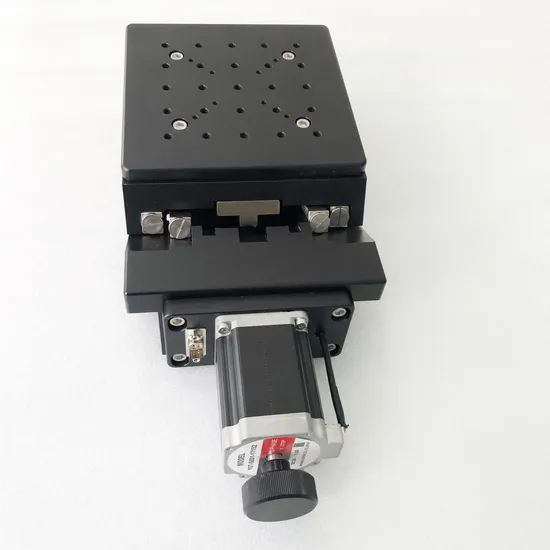

Ldtdj - 15hw - 02 Arc-Shaped Crossed Roller Guide Rail Motorized Goniometer and Tilting Stages Center Height 139mm

Product Description

Product Model	LDTDJ - 10HW - 02	LDTDJ - 15HW - 02	LDTDJ - 15HW - 03
Platform Dimension	120X130mm	120X130mm	160X160mm
Adjusting Angle Range	±10°	±10°	±15°
Transmission Ratio	464:1	372:1	400:1
Center Height	210mm	160mm	139mm
Prototype Motor	57BYGH(1.8°	57BYGH(1.8°	57BYGH(1.8°
Resolution	1.7"	2.2"	2"
Repeating Accuracy	10"	10"	10"
Max Speed	10°/Sec	12°/Sec	11°/Sec
Load Capacity	15kg	15kg	30kg
Net Weight	9kg	9kg	11kg

Products Description Certifications Company Profile Lidetai technology can design for you with the solutions for different experimental environment, different sites and different experimental conditions. Lidetai is a professional company specializing in researching and development, design, production, sales and service. We are the only enterprise who set and comply the "precision isolation" production standard and shaped the unique culture of our own. Since 2000, Lidetai formally established sale offices and after-sales service center in six major district of China. For many years, our clients from the universities and scientific research institutions ranging from the fields of physics, laser, optical, mechanical, electronic information to precision measurement, precision processing, biological engineering, and electro physiology. Sticking to the rigorous practical attitude, we build up a very good partnership with our clients. We are doing our best to make our clients satisfied. Our Advantages Shipping & Delivery

---
