Recycling Hard Plastic Lumps Drum Barrel Boxes Pipe Rubber Tire Paper Carton Wood Pallet Grind Jumb Bags Film Crushing Single Shaft Shredder with CE Certificate

Product Description

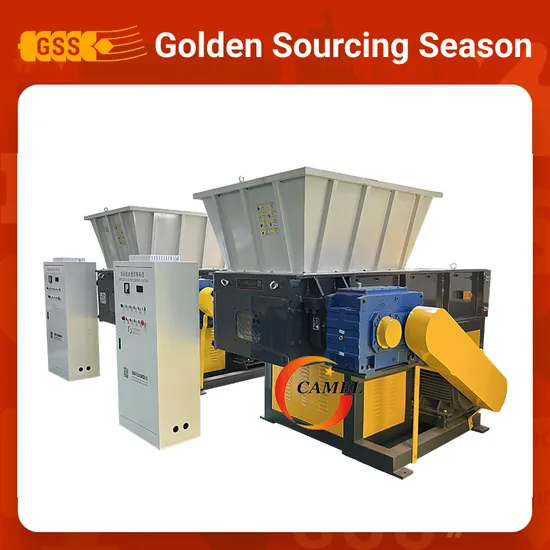

Single Shaft Shredder
Product Description
1.The single shaft plastic shredder is mainly used in all kinds of hollow or solid plastic material. The shredder machine is suitable to PE, PP, PET, ABS, PVC and engineering plastics.
2.This single shaft plastic shredder is new designed especially for shredding various big solid materials, unmanageable materials, plastic container and barrel, plastic film, plastic pipe, fiber and paper which the normal crusher can not handle.
3.The materials are pushed into the shredding chamber by hydraulic. Independent drive system and solid structure make the running stably.
Here are some shredding examples:
Product Parameters
WD Series Single Shaft Shredder

Model	Power (kw)	Number of rotary knife	Knife size (mm)	Shaft Rotating diameter (mm)	Dimension of crushing chamber (mm)	Output (kg/h)	Weight (kg)
WD-500	18.5	28	40*40 or 50*50	φ280	500*550	300~500	2800
WD -600	22	32		φ280	600*650	500~600	2900
WD -800	45	44		φ350	800*850	500~800	4100
WD -1000	55	52		φ350	1000*1050	800~1000	6500
WD -1200	75	68		Φ350	1200*1250	1000~1200	7000
WD -1500	90	81		Φ550	1500*1600	1000~1500	10500
WD -1600	110	85		Φ550	1600*1700	1000~1600	13800

Two design: 1.This machine is suitable to treat the big size of plastic product, such as plastic lumps, headpiece material, thick-walled large diameter plastic pipe, film roller, paper, fibre and others
2.Low dust, low noise and easy to operate.
Feed inlet is movable.
Blade
1. The blade base and blade on the rotary roller can be disassembly. It is easy to clean and maintenance.
2. The rotary blade use V shape installation so that the blade can cut material evenly, it can decrease the noise and decrease
energy consumption.
3. Each fixed blade with 2 cutting knife dege, when the fixed blade is wear, it can be rotated to 180 degree, then the blade
cancontinue to use.4. Each rotary blade with 4 cutting knife edge, when the rotary blade is wear, it can be rotated to 90 degree, then the blade can continue to use.
Mesh Screen
Mesh size can be designed according to customer requirement ,Mesh can control the size of the material.
PLC program control system, automatically rotating, shut down, safe and reliable running of the machine. The blade can rotate opposite direction. Electrical part brand, Siemens Delixi and so on
The main axis is drive by gearbox, its running very stably, low noise and strong power.
To see more product, please click the following weblink:
Double shaft shredder:https://camelmachinery.en.made-in-china.com/product/GdmtJOFuAMkj/China-Industrial-Double-Shaft-Shredder-for-Trash-Can-Waste-Car-Body-Crusher-Steel-Metal-Recycling-Machine.html
Crusher:
https://camelmachinery.en.made-in-china.com/product/lFDGtfOjAkhH/China-Small-Plastic-Grinding-Crusher-for-Bottles-Drums-Hollow-Sheet.html
Packaging & Shipping

Company Profile

Zhangjiagang Camel Machinery Co., Ltd is one of professional manufacturers for plastic extrusion and recycling equipment in China. CAMELMACHINERY aim is to be a top plastic equipment supplier in the world, base on the spirit of this principle, we are not only made our best to meet the market demand but also enhance innovative ability.
CAMELMACHINERY offers following major product lines :
1.PVC/PE/PPR/PP pipe extrusion line
2. PVC garden hose/spiral hose/steel wire reinforced hose extrusion line
3. WPC extrusion line
4.PET bottle recycling line
5.PE/PP film recycling line
6.UPVC PVC ceiling wall panel extrusion line,
7.WPC foam board production line,
8.Single shaft shredder,
9.Double shaft shredder,
10.Plastic crusher and so on.

Certifications
Our customers

FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
Q5:If we buy your machines, can you offer us wear-out spare pats?
A5:Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q6:What is the voltage?
·A6 380V 50hz 3 phase or any other voltage according to client's requirement.
