Resilient Flat Bed CNC Lathe Equipment Value (BL-CKW61125/61140/61160/61180/61200)

Product Description

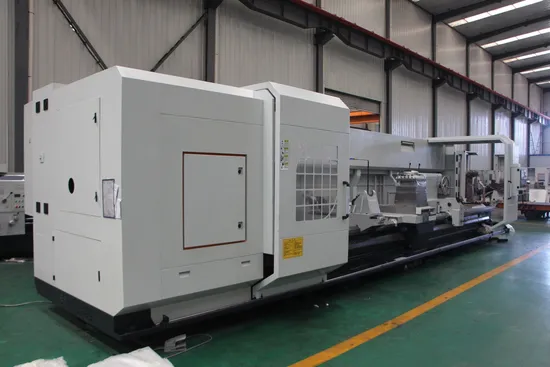

China heavy duty big bore spindle flat bed cnc lathe(BL-CK61100/61125/61140/61160)
- Guideway width 755mm,spindle bore Φ130mm,heavy-duty type,suitable for heavy cutting - Mono-block bed,high rigidity - Adopt China top quality compound resin sand cast iron,after aging treatment,good precision keeping - Guideway hardened by ultrasonic frequency, good precision keeping, long using lifespan - Guideway stick PTFE,remove creeping,good wearability - Adopt manual 4 class gear spindle, stepless speed in every class

Item	Specification	Unit	BL-CK61100	BL-CK61125	BL-CK61140	BL-CK61160
Capacity	Guideway width	mm	755
	Max. swing dia. over bed	mm	Φ1000	Φ1250	Φ1400	Φ1600
	Max. swing dia. over slide	mm	Φ610	Φ850	Φ1000	Φ1200
	Center distance	mm	1500/3000/4000/5000/6000
	Max. loading capacity	t	6
Spindle	Spindle bore	mm	Φ130
	Spindle bore taper	mm	Metric Φ140/MT6#
	Spindle speed	rpm	4~300(manual 4 class gears,speed stepless in every class)
	Spindle nose type	/	A2-15
	Chuck size	mm	Manual 4-jaw Φ1000mm
	Spindle motor	kw	22
Feeding axes	X axes travel	mm	520	620	720	720
	Z axes travel	mm	1350/2850/3850/4850/5850
	X/Z axes rapid rate	m/min	4/6
Tool post	Tool post type	mm	4 station electric tool post
	Toolshank size	mm	40×40
Tailstock	Tailstock quill travel	mm	300
	Tailstock quill dia.	mm	Φ160
	Tailstock quill taper	/	MT6#
Overall size	L	mm	5000/6500/7500/8500/9500
	W×H	mm	2100×2100	2250×2300	2350×2450	2350×2600
Weight	N.W.	T	10/11.5/12.5/13.5/14.5	11/12.5/13.5/14.5/15.5	12/13.5/14.5/15.5/16.5	13/14.5/15.5/16.5/17.5

Standard configuration: - GSK controller
- Manual chuck
- 4 station tool post
- Manual tailstock
Optional configuration: - SIEMENS 808D ADVANCED/FANUC 0I TF controller
- 6/8 station tool turret
- Hydraulic tailstock Other models Choice:
