Product Details
Product Description
Product Description
China Manufacturer 4 sides 8 faces rotary drum automatic paper pulp egg tray making machine
Advantages
1. Rotary drum design, energy saving drive motor, low power consumption
2. High precision divider gearbox from Taiwan, International brand bearing, long life span
3. Stainless steel pulp tank, stainless steel pulp pipe, stainless steel machine cover
4. Aluminum forming molds can be customized as your egg tray or paper trays samples
5. Easy to change the forming molds, you can make different shape paper pulp packing trays by quick changing molds
6. 4 sides, 8 sides and 12 sides rotary drum design will different production capacities are optional
7. Brick drying oven, single or multi-layers metal dryer oven can be matched, various heat source (thermal oil, steam, natural gas, diesel oil, coal etc)
Model
| A2000
| A3000
| A4000
| A4500
| A5000
| A6000
| A7000
|
Sides
| 3*4
| 4*4
| 4*5
| 4*8
| 5*8
| 6*8
| 5*12
|
Molds Qty (PCS)
| 12
| 16
| 20
| 32
| 40
| 48
| 60
|
Working Speed
| 10-15 drops/min
| 15-22 drops/min
| 17-20 drops/min
|
Production Capacity
(pieces/hour)
| 2000-2500
| 2500-3500
| 3500-4200
| 4000-4500
| 5000-5500
| 6000-7000
| 5500-6500
|
Power Consumption
| 57KW
| 60KW
| 75KW
| 135KW
| 147KW
| 165KW
| 175KW
|
Water Consumption
| 455kgs/H
| 550kgs/H
| 730kgs/H
| 780kgs/H
| 980kgs/H
| 1150kgs/H
| 1050kgs/H
|
Waste Paper Consumption
| 175kgs/H
| 210kgs/H
| 280kgs/H
| 315kgs/H
| 420kgs/H
| 490kgs/H
| 420kgs/H
|
Waste paper old cardboard box as raw material, water is recycling, no pollution to environment
|
Drying method: sunshine, brick drying oven, single or multi-layer metal dryer
|
The production flow of paper pulp egg box trays

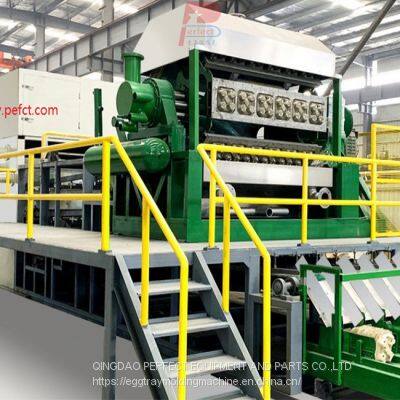

Project Cases of our automatic egg tray production machine with metal dryer
For more details of our egg tray making machines, please feel free to contact with us by what's app +8 18561832088 ! or visit our website
>>
