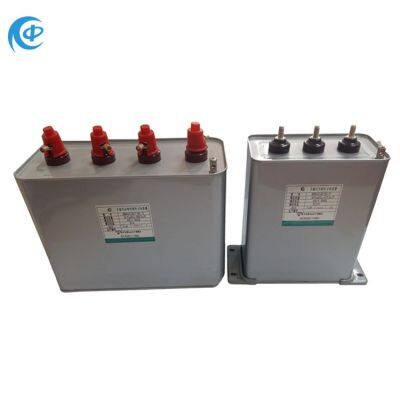

3phase 440VAC 50Hz 10KVAR 15KVAR 20KVAR 25KVAR 30KVAR 40KVAR 50KVAR Power Factor Correction Capacitor
Self-healing type low voltage parallel capacitor applies to the rated voltage 1200V and below industrial frequency exchange in power system,in order to improve the power factor,reduce reactive power loss,improve the quality of voltage purpose.
1.With insulated from can reply the adopted,and withstand voltage and electrical good metalized plastic(MPP) as medium, if produce medium destroy,restore insulation,the capacitor thirty something reinstated and continue to move,achieve insulation.
2.Since can reply the dielectric loss is small,low temperature and long service life.
3.According with GB/T12747-2004;IEC60831-1(1996) standard.
4. Improve the power system operation performance.
5. Improve power efficiency and Improve the quality of grid.
Main Specifications
Standard
| GB/T12747.1-2004 ; IEC60831-1:1996
|
Apply Condition
| Indoor, -25℃~55℃, Humidity ≤ 80%RH
|
Height
| ≤ 2000MSL
|
Rated Voltage
| 0.23 - 1.2KVAC
|
Rated Output
| 1 - 90KVAR
|
Capacitance Tolerance
| ±5%, ±10%
|
Voltage Endurance
| 2.15Un in 2 seconds between T-T;3000VAC in 10seconds between T-C
|
Tangent of loss angle
| ≤ 0.1% (rated voltage at 20℃)
|
Ceiling Voltage
| 1.1Un
|
Ceilling Current
| 1.3Un
|
Self-discharge Feature
| The terminal voltage will reduce below 50Volt in 3 miniutes after disconnecting from power line.
|
>>
