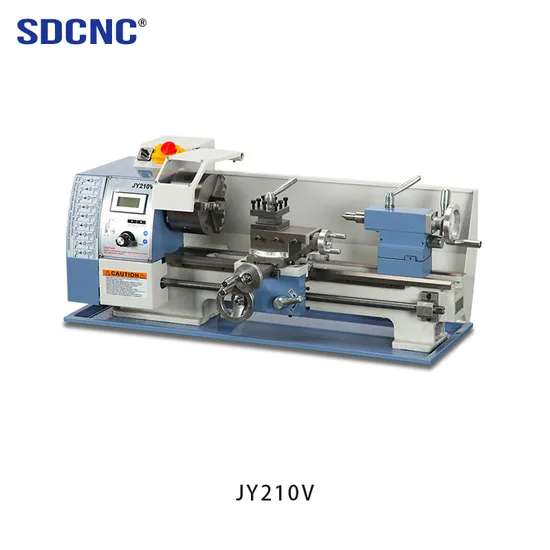

Small Mechanical Processing Instrument Lathe High Precision Multifunctional Household Woodworking Machine Thread Lathe Jy210V

Product Description

Product Parameters

Specifications	JY210V
Swing over bed	210mm
Swing over cross slide	110mm
Distance between centers	400mm
Width of bed	100mm
Spindle bore	21mm
Spindle taper	MT3
Range of spindle speeds	50-2500rpm
Range of metric threads	0.5-3mm
Range of inch threads	8-44 T.P.I
Range of longitudinal feed	0.1-0.20mm
Tool post type	4
Max slide way	55mm
Max cross slide travel	75mm
Max carriage travel	276mm
Taistock quill travel	60mm
Tailstock taper	MT2
Main motor	600W
Net Weight	70kgs
Dimension	900X480X450mm

Product adwantage:
· Open the switch to start the operation, do not need to worry about not touch the boot to bring security risks, emergency shutdown, just take the red cover to shut down, very safe.
· Telescopic sets with scale, you can intuitively see the length of the telescopic handle scale, precise scaling can be digitally standardized, but also lateral movement.
· By adjusting the speed switch can control the spindle speed 50 to 2500RPM.
· Machine is equipped with all-metal gears, power strong, wear-resistant, durable, more accurate rotation. In particular, the thread is more accurate.
· Machine using four-way rotating turret, which can be four common turning.
· Large slide mobile handle, small slide mobile handle, bed saddle mobile handle, tailstock mobile handle, tailstock telescopic cover, tailstock side of the moving position of the scale, the operation more accurate, more professional performance.

---
