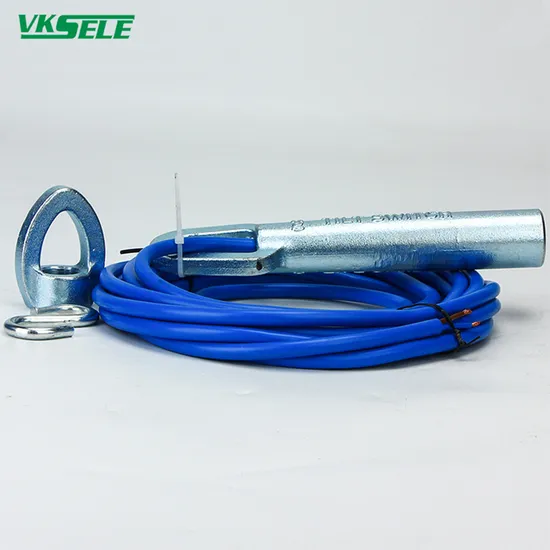

Cast Iron Tilt Switch 20-39 20-39-25 Black Cable Tilt Probe

Product Description

High and low level detector, also known as tilt switch, is a simple structure, easy to use,safe and rellable material flow, material level detector, easy to instal, strong and corrosion resistant, Uses: Widely used in chute coal pipe switch clogging delection,round coal bunker height alarm and stacker-reclaimer coal heap detection, tipper unloading probe, etc. Working principle:
When the vertical suspension tilt switch is subjected to external force and deviates from the vertical position by more than 15degrees, the contact inside the switch acts, and the normally closed contact is opened (or the normally open contact is closed) When the external force is withdrawn, the tilt switch returns to the verical state and the contacts are reset and closed (or open)Use the change of the opening and closing of the inner contact of the tilt switch to judge the working condition of the equipment.so as to take timely measures to protect the equipment.
Product Data sheet:

Product name	Cast lron Tilt Switches	Total length of probe	230mm
Product model	WKS-QX-II 20-39-25	Probe length	195mm
Ambient temperature	-20°C-+100° C (customize 200°c)	Operating voltage	12-24VAC/DC
Shell material	Cast lron	Tilt angle	25°

Q1: Would you accept OEM/ODM ?
A1: Yes,we accept.OEM/ODM has a MOQ requirement.
Q2: Can we get samples ?
A2: Yes,you can get sample to test quality,but the freight for express is on buyer's account.
Q3: What's the payment term ?
A3:T, Western Union, MoneyGram,Paypal etc.
Q4: How's the delivery time ?
A4: Normally is 3-10 work days, lf the quantity is large,We need to negotiate.
Q5: What is the standard of package ?
A5:Normally are cartons, but also we can pack it according to requirement.
Q6: Could you offer Form E, C/O etc ?
A6: Sure, We can apply to CCPIT.
Q7: Are you a trading company or a manufacture ?
A7:We are the manufacturer& exporter in the industry so we can supply product for you with factory price.

---
