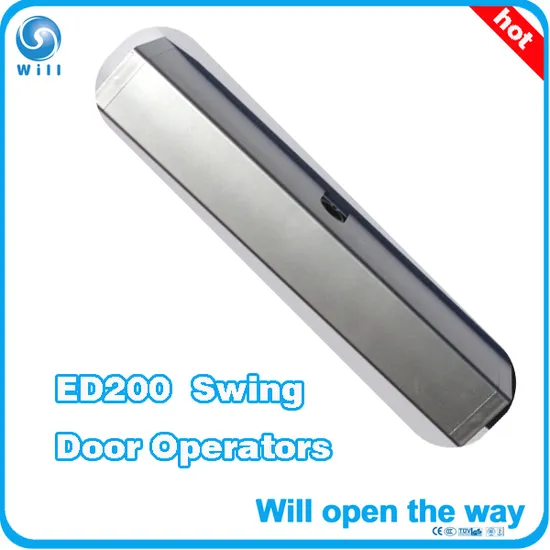

Swing Door Operator Swing Door Drive ED100

Product Description

Swing Door Operator ED100/ED200
Vedio
https://willdoor.en.made-in-china.com


Automatic Swing Door Operator ED100/ED200 is intelligent equipment made from data automation control technology, enjoys excellent capability and strong function. It can be connected by: All kinds of door access control accessories such as bank card reader, office magcard reader, fingerprint identity system etc. Building intercom system, sensitive inductor, fire-alarm device, burglar-alarm equipment, UPS backup battery, push button and other TTL, CMOS control circuit. 1.1 Operation Procedure Activated by the signals from external control device, unlock open buffer action & stop hold-open close buffer action & stop lock and seal. 1.2 LED Indicator lighting LED: opening status 1.3 Main Parameters l Opening angle: 90 ~130 l Applicable for single leaf swing door: max weight 120Kg, max width 1200mm l Opening/closing speed adjustable: 3-6s l Hold- open time adjustable: 0-20s l Power supply: 220 V 10% 50~60 HZ l Self-protection safety system: self protection against overheat, overvoltage, overcurrent, obstacle-encountering l Rated power: 45W; static power: 5W
Feature
1..Function 95% similar as Dorma ED200 Easy and works with original dorma ES200 Easy
2.Brush Motor or Dunker Motor 99.5W ,powerful enough to bear 2X160KG gates.
3.Germany Dunkermotor,CE approved

Standard Configuration
1.Door Operator
2.Push or Slide Arm
3.Stoper
Opetional Parts
Motion Sensor
Program switch
Topscan

Function Programs Off
Automatic
Permanent Open
Partial
Exit only
--------------------------------------------------------------------------------------------------------------------------------------------
Additional
Low noise desigh (<27db)
One million times of tests passed
Warranty: 24months Push&Go function
Emergency opening in case of power failure / Fail-safe
Obstacle detection with automatic return mechanism
Self monitoring light barriers
Slow speed search for obstruction
