CNC Horizontal Four-Axis Milling Double-End Bending Pipe Machine Processing Elbows Equipment Manufacturers

Product Description

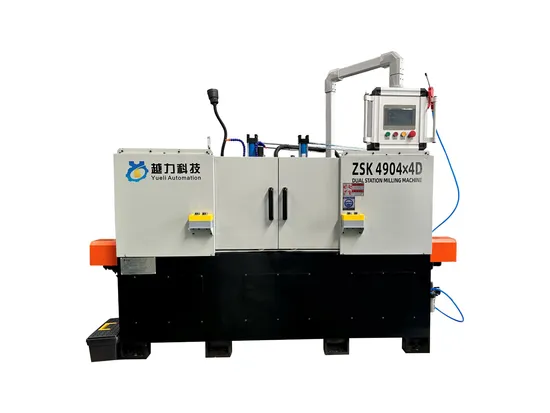

CNC horizontal four-axis milling double-end bending pipe machine Processing elbows
1,Product Function a, Single spindle unit on one side and one single spindle unit on the other, HIWIN boxway rall slide table, complete drilling and milling process.
b,One-time clamping, can place 2 workpiece, complete drilling, milling process, heavy-duty Cutting
2,Product Structure
High rigid structure, five-face Milling Processing Center to complete the base processing at one time, to ensure the concentricity of the two spindle units, the best stability Suitable for medium and large quantities of copper, zinc alloy, aluminum alloy, stainless steel, steel need both sides at the same time processing workpiece High Quality Mihanna Castings, the structure of finite element analysis, to achieve the best stability X, Y axis are used on the Taiwan silver precision class large diameter screw Rod, and to be appropriately pre-pressed, the tail using pre-pull Shooting
3.Reference data:

No.	Name	Model/specification	Qty	Brand
1	Base	Weldment	1	Yueli
2	Spindle bearing		8	Harbin
3	125 servo power head	YL125	4
4	lift cylinder	Dia 50-100mm	1
5	Clamping cylinder	Dia 32-100mm	2
6	Feed cylinder	Dia50-150mm	4
7	Hydraulic station		1
8	Spindle motor	3KW	4
9	Horizontal dovetail slide		4
10	Chip removal system	Inclined type	1

4.The main technical parameters

No.	Category	Specification	Remark
1	Number of processing stations	Two stations
2	Working abilityr	The maxprocessing diameter of the power head is 120	Optional
3	Spindle holder type	face mount
4	Spindle parameters	Maximum speed 0-1500 r/min	Speed adjustable
5	Tool installation method	face mount
6	Working precision	Hole positioning accuracy 0.05/repeat positioning accuracy 0.03
7	Cylinder working pressure	0.6 Mpa
8	Dimension	2400X1500X1200mm	Reference
9	Weight	1800kg	Reference
10	Power ability	Total power 15kW	Reference

5. Craftsmanship
Cast iron is reheated at high temperature and aged for more than six months Rigorous assembly process (rail assembly, lead screw assembly, bearing assembly, etc.) Superb scraping technology (motor seat scraping, spindle end face scraping, column mounting surface scraping) Scientific production, traceability of the whole process of the quality control system
Quality assurance When the pitch error is detected, the straightness of the linear guide in xx and yy directions can be detected at the same time to ensure the machining and assembly accuracy of the machine parts. The formal positioning accuracy and repeated positioning accuracy of the machine tool are measured The verticality of the main shaft and the working plane accuracy of the whole machine must be guaranteed within 0.01mm The verticality between Z-axis guide rail and working is required to be guaranteed within 0.01mm. The machine detects the verticality of xy axis guide rail, and the accuracy is required to be within 0.005mm.
Application field Suitable for small and medium-sized box class, plate class, plate class, valve class, shell class, mold and other complex parts of a variety of small and medium-sized batch processing, widely used in precision parts, precision mold, 5G products, hardware, auto parts, medical equipment industry. Yueli Technology is a technology enterprise integrating R&D, sales and production ,After years of hard work and development, the products include 5G terminal processing centers, drilling and tapping machines, five-head engraving and milling machines, five-linkage 3D profiling polishing machines, five-axis jewelry inlaid stone engraving and milling machines, peeling machines, gantry processing centers, high-speed Engraving and milling, forming machine, low-pressure casting machine, gravity die-casting machine, electric furnace, (automatic) core shooter, sand mixer, (CNC) drilling and tapping machine, machining center, engraving machine, automatic polishing machine, peeling machine, grinding machine, etc. series of products. our service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.
7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.

---
