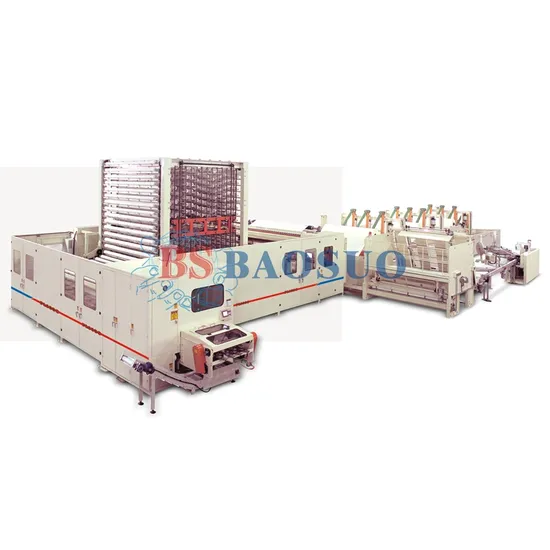

Rewinding YD-PL600C Tissue/Toilet Paper Making Machine

Product Description

Rewinding YD-PL600C Tissue/Toilet Paper Making Machine
Min. Order:1 set
Payment Term:T/T
Delivery Time:2 ~ 6 months
Shipping Port:Foshan
Product description:

REWINDING SYSTEM
Design speed	600 m/min
Alternation speed	25 logs/min
With core speed	550 m/min
Coreless speed	400 m/min
Jumbo roll width	2850mm (Other size to be specified)
Jumbo roll diameter	≤ φ2500 ~ 3000 (Other size to be specified)
Jumbo roll core size	φ76.2 mm Shaftless type (To order)
Finished log diameter	φ70 ~ φ135mm
Finished log core diameter	φ38 ~ φ50 mm
Perforation	6 pieces spiral upper perforation knife, improve the durability
Rewind type	Non-stop
Parameter set	HMI
Rewind alternation	Core insert (Patent protection)
Control system	PLC, Inverter, Optical-electro-mechanical integration
Tension control	Encoder, PLC, Inverter
T30 Tail Sealer	Patent protection
Backstand	1 ~ 3 Ply (To be confirmed by client, independent drive)
Tall length	5 ~ 30mm (adjustable)
Log diameter	φ60 ~ 130mm

ACCUMULATOR
Speed	25 logs/min
Power	3KW

LS200-4L LOG SAW
Design speed	200 cuts/min
Log feed	Servo control feeding system
Production speed	180 cuts/min, 4 rolls/cut
Feeding channel	4 channels
Grinding system	Pneumatic grinding, parameter can be set on control panel
Cutting tolerance	±1 mm
Log size	Φ70 ~ 135 mm
Dust suction system	Remove the tissue and grinding dust
Control system	PLC
Embossing unit	Steel to rubber, point to point / nested / DECO embossing lamination system
Edge embossing unit	Steel to steel

Brief Introduction: Stable production speed up to 500 m/min; Complete warning system and powerful integrated control system, supports remote terminal connection and detection; Flexible and easy handling independent motor drive for each function unit; Straight in machine web cutting.precise log diameter control system is accurate and easy operating; Servo control perforation to secure accurate and stable sheet and pitch, and pitch is adjustable; Edge embossing bottom roll is coated with alloy to achieve surface hardness 70HRC ensure durability. Customized edge embossing pattern is carved on6408 bearing to ensure its quality; Each unwind back stand is equipped with web tension control system to secure real time monitoring and web tension precise adjustment; Mitsubishi or Siemens PLC, large screen HMI, opto-mechatronics control technology, automatic web break detection, and accurate signal feedback; Embossing lamination unit, embossing unit and automatic core feeding systems are optional. About us
Brand Number of Employees Annual sales Established in

BAOSUO

501-1000 People

More than US$50 Million

1989

Baosuo Enterprise., established in 1989, is a well-known corporation which specializes in machinery for tissue. We uphold the business strategy of basing on domestic market and going global, which helps to lay the foundation for building our global well-known brand. Our products include tissue making machines, tissue converting machines, tissue packing machines and electric intelligent systems. We are dedicated to providing the best tissue production turnkey solution and first-class service from design, manufacturing to installation.
Factory Exhibition Activities 1.The World Tissue Exhibition
2.Tissue World São Paulo
3.The 26th International Paper Industry Exhibition
FAQ 1.I am new in this business, what kind of information I need for start the project? Production requirement in details, such as products type, capacity, material size and so on.
2.I wan to produce toilet roll and kitchen towel, which machine is proper for me? We have different models based on capacity and specification, please provide us the detailed requirement, or get in contact with sales representatives for quotation.
3.What is the price of the machine? Machine price is based on confirmed machine model and specification, our sales representative will guide you the proper machine for you requirement, and offer quotation accordingly.
4.How can I get in contact with the sales representatives? Please contact with us via email, or leave message on website, our sales representatives will follow on your order on time.
5.How can I install the machine? We offer online installation instruction, or send technician for guiding installation and operation training based on requirement.
6.What about the after sale service and spare parts supply? Our after sales team will support your with on time suggestion and origin spare parts supply.
7.What is the guarantee time of the machine? Machine guarantee for one year after the acceptance.

---
