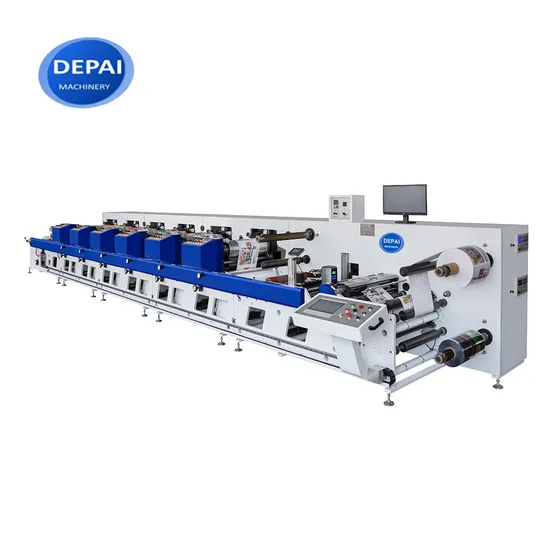

4 Colors Paper Label Thermal Label Roll to Roll Horizontal Printing Machine with Slitting

Product Description

350mm 4 Colors UV Ink Paper Label Thermal Label Roll to Roll Horizontal Printing Machine with Slitting
6 Colors Petal Type Flexo Printing Machine Product Description
The printing unit has the same structure, simple and reliable transmission, simple operation and maintenance, wide adaptability, convenient color group combination, easy online post-printing process, high overprint accuracy, suitable for short-run printing, and the running route of the material belt is changed by the guide roller. It can realize double-sided printing at one time.

Feature
1.From the discharge to the receipt of the short distance.2.The ceramic stick is equipped with a scraper,which is printed and moist,and had a clear color.3.Repeatedly printing the circumference of 190.5-635mm,filling the blank of the cascading flexographic printing machine, the slanting trademark printing machine,the petal printing machine and the printing length.4.The use of gear color to solve the 360 degree coloring device gap,assembly,wear,ect,affecting the color accuracy and printing instability.5.From left to right:coil feeding,printing,automatic infrared drying winding a coherent completion.6.Water-based ink (UV ink)printing,pollution-free,environmentally friendly,printing speed caries according to the networkcable,the speed is also different,the fastest speed of printing labels is 90 meters per minute.7.Printing bills,labels,cardboard,high-grade stickers,clothing tags,ect.8.Printing materials:paper 20-250gsm self adhesive soft coil and other materials.

Specification

Model	DP-HPM-210	DP-HPM-320
Printed Form	Flexo	Flexo
Printing Speed	10-80m/min	10-80m/min
Mechanical Speed	10-100m/min	10-100m/min
Maximum Width of Substrate	230mm	340mm
Printing Width	50-210mm	50-320mm
Printing Circumference	190.5-635mm	190.5-635mm
Plate Thickness	1.7/2.28mm	1.7/2.28mm
Anilox Roller Specifications	Φ85*250*4	Φ85*350*4
Aluminum Guide Roller Specifications	Φ70*250	Φ70*350
Printing Bottom Roller	Φ85*250	Φ85*350
Unwinding Maximum Diameter	Φ500mm	Φ500mm
Maximum Winding Diameter	Φ500mm	Φ500mm
Oven Maximum Temperature	80ºC	80ºC
Substrate Core Diameter	74mm	74mm
Total Power	8.5KW	10 KW
Drying Heat Source	Electric heating	Electric heating
Machine Weight	2000kg	2500kg
Dimensions	2900*900*1200mm	3500*900*1200mm
Body Color	White (Customized)	White (Customized)

Detailed Photos
Standard Configuration
Printing Unit
Anilox cylinder pneumatic clutchCeramic anilox roller---one set (1 pcs) or as your requirePrinting cylinder---one set (1 pcs) or as your requireSingle side doctor bladeManual vertical and horizontal roller controllers(details is in the following main part, printing device)
Control Panel PLCHot Air Dryer LED UV DryerCorona Treater
When printing plastic film materials, static electricity can be eliminated and printing quality can be improved.
Cold Stamping Turn BarVideo Inspection Camera
By video inspecting system, the machine can regulate and horizontal register without stopping, it improves the printing quality and increases the producing capacity.
Die Cutting Station Slitting Station Electric Crane Web Guiding 1. One set of paper binding table. 2. Electronic paper web guide traction device, there was a small offset
paper web movement, the system can accurately continuously revised.
Servo Motors (Automatic Color Register System)
Finished Products
#Printed Sample Without UV# #Printed Sample With UV#

#Bottel Labels# #Printed Aluminium Foil Roll#
Company Profile
Office
Workshop
Packaging & Shipping
FAQ
1. Q: Are you trading company?
A: No, we are the manufacturer.
2. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw, we will choose the best quality) from the beginning.
3. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
4. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.

---
