LR3000 Eye-Safe Laser Rangefinder Module

Product Details

Product Description

Product Description

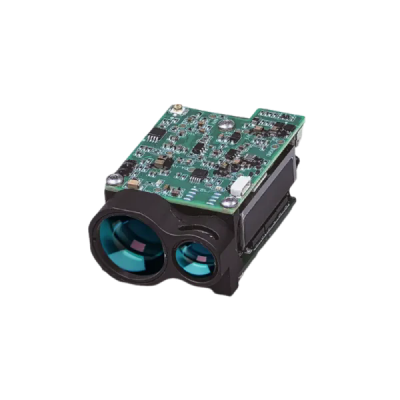

LR3000 Eye-Safe Laser Rangefinder Module
Built upon a proprietary 1,535nm semiconductor laser, a high-performance optical system, and a self-developed rangefinding algorithm, this module not only excels in technical capabilities and reliability but also meets industry standards, supports local manufacturing, and ensures consistent quality across production batches.
It is suitable for a wide range of high-performance target detection systems.
Feature
Self-Developed Laser for Enhanced System Stability
1.Incorporates a self-developed 1,535nm eye-safe erbium glass laser paired with a well-designed optical system.
2.Achieves a measuring distance of 3km and adapts to various harsh environmental conditions, making the system more stable.
Compact Design for Minimized System Dimensions
1. Boasts compact dimensions of just 48×31×25mm and a weight of only 32g, which makes it easy to integrate into systems with strict size requirements.
Comprehensive Functionality for Enhanced System Performance
1. Uses a standard UART interface to facilitate easy communication with the main control and convenient integration into systems.
2.Provides the multi-target rangefinding feature to obtain multiple types of distance of targets in a single emission, accommodating diverse rangefinding requirements.
SpecificationBasic FeaturesElectrical CharacteristicsPhysical CharacteristicsEnvironment Adaptability

Laser Wavelength1535±5 nmEye-safe ClassClass 1Maximum Range: Building4200mMaximum Range: Car3500mMaximum Range: Human (0.5×1.7m)2000mMaximum Range: UAV (0.2×0.3m)1000mMinimum Range20mMeasuring Accuracy±1mMeasuring Frequency1~10Hz (adjustable)Laser Emitting ApertureΦ7.5mmLaser Divergence Angle~0.6mradReceiver ApertureΦ16mmDetection Probability≥98%False Alarm Rate≤1%Multi-Target DetectionUp to 3Range Resolution20m
Communication InterfaceUART (TTL_3.3V)Baud Rate9600/57600/115200 (default)Power Supply ModeDC4.5-16VPower Consumption≤2WPeak Power Consumption7w@12VStandby Power Consumption≤1mw (Power ON
Weight32±1gDimensions48×31×25mmShock1,200g, 1msVibration5~50~5Hz, 1 octave/min, 2.5g
Operating Temperature-40℃~+70℃Storage Temperature-55℃~+75℃

Application Scenarios

Engineering Survey

High Performance Pods

Photoelectric Detection

UAV Airborne
