Product Description
Product Description

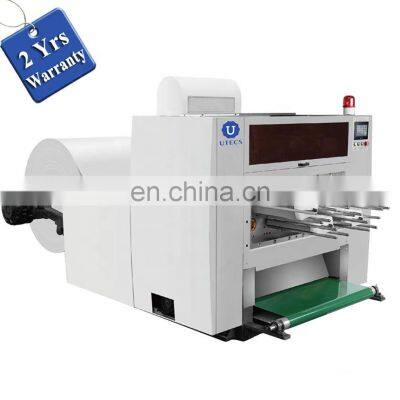

TMQ850 Automatic Disposable Paper Cup bowl Blank Fan Die Punching Press Machine with tidy collection
Videos
Video demonstration only for reference
Video 01: /watch?v=8qh0WKVAVEQ
Video 02: /watch?v=Dw6y0DOPkxE
Product Description
Description
TMQ850 series automatic roll punching machine based on international advanced technology, it’s widely used in printing, packaging and paper products industries. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, manual pneumatic lock plate, photoelectric correcting deviation system, centralized oil lubrication. All the key parts and controls of the machine are imported.
Parameters:
Model
| TMQ850
| TMQ920
|
Cut Precision:
| ± 0.20mm
| ± 0.20mm
|
Speed
| 300-350 times/min
| 280-320 times/min
|
Max Feeding Width:
| 850mm
| 920mm
|
Max unwinding diameter
| 1500mm
| 1500mm
|
Paper Weight
| 150-400GSM Paper and PE coated Paper
| 150-400GSM Paper and PE coated Paper
|
Air Consumption
| 0.2 M3/MIN
| 0.2 M3/MIN
|
Total Power:
| 10KW
| 10KW
|
Total Weight:
| 3500kg
| 4000kg
|
Dimension:
| 3500*1700*1900 mm
| 3500*1800*1900mm
|
Main Electrical Components:
PLC
| Taiwan Delta
|
Servo Motor
| Taiwan Delta
|
Touch screen
| Taiwan Weinview
|
Frequency converter
| Taiwan Delta
|
Switch
| Taiwan Delta
|
Main motor
| Taiwan
|
Feeding motor
| Taiwan
|
Contactor
| Eaton
|
Relay
| Weidmuler
|
Button
| Eaton
|
We reserve the right to change the component without notification in advance.
Detailed Images
Our Services
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min?
B: Paper thickness in GSM
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Packaging & Shipping
Contact Us
YOU ARE WELCOME TO CONTACT US ANYTIME AVAILABLE.
Mobile/Whatsapp/Wechat: +86-18258286679
Email: utecs@ , utecsinter@ , danielsuer@
Skype: danielsuer
