High Precision Z3050 X16/1 Double Column Hydraulic Radial Drilling Machine

Product Description

High precision Z3050 X16/1 Double Column Hydraulic Radial Drilling Machine

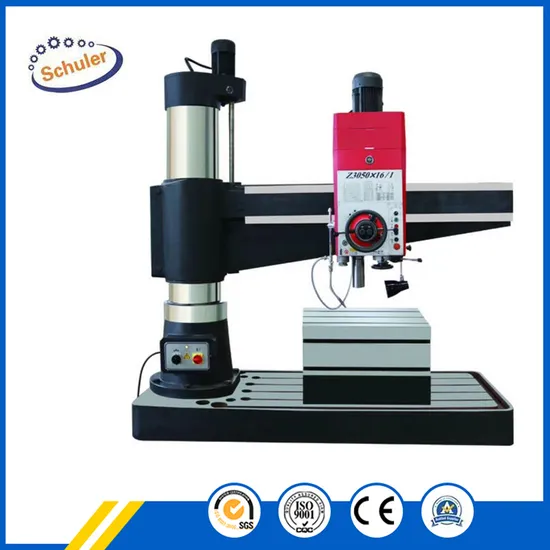

Product picture:
Features:
The radial drilling machine model Z3050, Z3063, Z3080 is a new series with diversified functions of product which has been designed and accomplished referring to the intermational standards (ISO) CE in the recent years. In this machine, hydraulic preselection speed and feed change mechanisms are adopted.
The spindle head, radial arm and columns are clamped by the hydraulic clamping mechanisms, and the forward, reverse, stop (braking), as well as the setting of spindle in neutral position are all controlled by a single-lever, the machine has the characteristic features of perfect performance, safe, reliable and easy operation, convenient maintenance, high accuracy, ample rigidity and long service life. It is used for drilling, counter boring, spot facing, reaming, tapping and boring. It is the machine widely used in every department of mechanical machining.
Radial Drilling Machine Technical Parameters:

SPECIFICATIONS:		Unit	Z3050X16
Max. drilling diameter		mm	50
Distance between spindle axis and column		mm	350~1600
Distance between spindle end and working surface of base plate		mm	320~1220
horizontal movement of spindle box		mm	1250
Work table size		mm	630 x 500 x 500
Taper in spindle:			No.5
Spindle travel:		mm	315
Number of Spindle Speeds:			16
Range of Spindle Speeds:		r/min	25-2000
Number of Spindle Speeds:			16
Range of Spindle Feeds:		mm/r	0.04 -3.2
Power of main drive motor:		kw	4
Weight	N.W	kg	3500
	G.W	kg	3850
Overall dimensions(L x W x H)		cm	250 x 107 x 284
Packing dimension(L x W x H)		cm	258X110X 255

Brand Image:
As a professional manufacturer of drilling machine, we want our customers to know of our commitment to providing the latest products to all customers.
Radial Drilling Machine Details:
Radial Drilling Machine In the Workshop:
Radial Drilling Machine Transport Packaging:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
Company and Certification Information:
Shandong Schuler CNC Machinery Co., Ltd. is a professional manufacturer of vertical machining center, high speed machining center, gantry machining center, vertical milling machine, universal milling machine, turret milling machine, lathe, CNC lathe, radial rocker drill, metal band sawing machine. enterprise. The company is located in Tengzhou City, Shandong Province, with convenient transportation and industrial intensive. The company integrates research, development, design, manufacturing, sales, installation and maintenance of CNC machine tools. With high-level production equipment technology and excellent, high-quality staff, providing high-quality product quality and service, the products sell well in domestic and foreign markets.
Zhongzheng is a person, and integrity is the foundation. It is the aim of Schuler people. It is consistent with the words and deeds, and it is always the commitment of Schuler people to our customers.
Schuler is willing to cooperate with every customer and peers to win the best for the development of CNC machinery industry. We will return the society with professional and perfect technical support services.
The company's main products include CNC machining center, industrial CNC milling machine and gantry machining center. , metal band sawing machine, CNC lathe, universal turret milling machine, ordinary milling machine, punching machine and other products, customers are welcome to contact us, we will provide you with quality products and satisfactory service.
