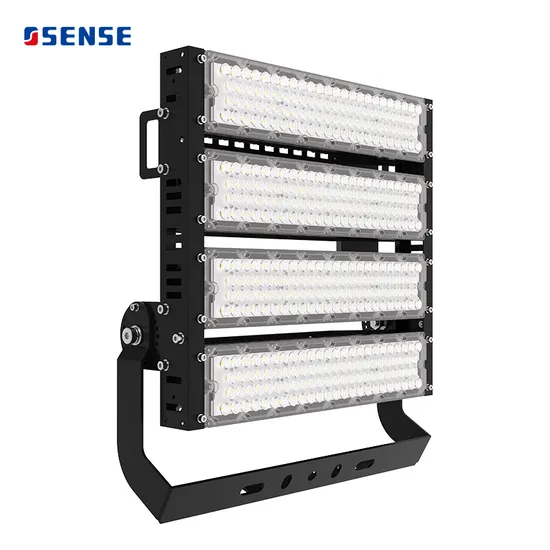

1000W High Power Floodlight Used for Sports Field Stadium Lights

Product Description

LED MS Stadium Light Features-Patent private mold, integrated Die-casting -Die-casting + fin designed stadium lights are 20%-30% lighter than die-casting products of the same power -IP65 rated for external illumination -LED Chips and Driver can be changed according to the requirement -Equipped with High efficiency and power factor-led driver -Dimming optional, 0-10V / DALI / Time control available -Lifetime of LED'S : Tq =45°,>50000h - L70B50
-96-in-1 LED5050 solution design, high luminous efficiency, long life, up to 150lm/w
-Unique polarized 50°/65° optical design meets 0° elevation angle installation requirements, low UGR

GENERAL INFORMATION		ELECTRIC INFORMATION
Mounting Module	Bracket system	Electrical Class	Class I
Operating Temperature	-30ºC/+45ºC	Norminal Voltage	100-240VAC/100-277VAC/180-528VAC 50Hz/60Hz
Storage Temperature	-30ºC/+80ºC	LED Current	SMD5050 160mA@24V SMD7070 160mA@54V SMD3535 350mA@3V
Lens Options	8°;20°;40°;60°;90°;P50;P65	LED Lamp Power	500W(70000Lm) 750W(105000Lm) 1000W(140000Lm) 1250W(175000Lm) 1500W(210000Lm)
Main Reference Company Standards	EN 60598-1; EN60598-2-1; EN62493; EN55015; EN 61000-3-2; EN61000-3-3; EN61547; EN62471 IEC 60598-1:2003;IEC 60598-1:2008; IEC 60598-2-1:1987;IEC 60598-2-3:2002; IEC 60838-1:2004;IEC 60838-2-2:2006; IEC/PR 61341:2010;IEC 61347-1:2007; IEC 61347-2-13:2006;IEC 62031-2008; GB 7000.1; GB 7000.201; GB17743; GB17625.1	Power Factor	≥0.95(at full load)
		Flickering Percentage	≤8%;≤3% (optional)
		THD	≤20%
		Driver Brand	Meanwell/Moso/Sosen/INVENTRONICS
		Surge protection options (kV)	L-N 4KV,L/N-PE 6KV@Meanwell L-N 6KV,L/N-PE 10KV@Moso/Sosen/INVENTRONICS 10kV (optional) with LED signal and thermo fuse to disconnect load at the end of life 20kV (optional) with LED signal and thermo fuse to disconnect load at the end of life
		Control system	DALI/1-10v/0-10v/DMX512 dimming, optional microwave induction function
		Mains connection	For cable max section 2.5mm2 Outgoing cable H05RN-F 2/3/5 × 1.5mm2 Length on request (optional)

HOUSING AND MATERIALS		OPTICAL INFORMATION
Housing	ADC 12 die-casting +AL 1070 pure aluminum	Led color temperature	4000K , 5000K ,5700K,
Optic	PC	CRI	CRI≥70; CRI≥80(optional); CRI≥90(optional); TLCI is an option available upon request
Housing Finish	Powder spraying surface treatment, corrosion resistance	LED Brand	CREE;OSRAM;Nichia
Refractor	PC UV0	Upward light output ratio	0%
Standard Colour	RAL9017 Black;RAL9007 Gray(optional)	Photobiological safety class	IEC 62471, EN 62778 EXEMPT GROUP
IP	IP65	Testing standard	LM 79-19, EN 13032-1 (all measurements in ISO17025 accredited laboratory)
Impact Housing Resistance	IK08 (5 J) IK09 (optional) (10 J), IK10 (optional) (20 J)	Lifetime of the LED's	Tq =45°,>50000h - L70B50
Impact Lens Resistance	IK08 (5 J)	/	/
Vibration Test	Compliant with modified IEC 68-2-6 (0.5G), ANSI C136.31 (3G)

Product details:
FAQ
Q1. Are you a manufacturer?
SENSE : Yes, we have our own factory with over 20 years of R&D and manufacturing experience based on ISO quality management since 2003.
Q2: What Certification do you have?
SENSE : TUV/CB/CE/EMC/SAA/CCC/RoHS approved. And with IP65/IP66/IP67/IK08/IK09/IK10/EMF/LM79/LM80/TM21/WF2/IES report.
Q3. Can I have our LOGO on the products and packages?
SENSE : Yes. We provide OEM service to our customers
Q4: Warranty of your products?
SENSE : 5-7 Years warranty depends on customer's requests
Q5: What about the lead time?
SENSE : 3-7 days for sample, 10-20 days for mass production based on order quantities..
Q6: Can you provide OEM/ODM?
SENSE : Yes, OEM/ODM support for the different application requirements.
Q7: How to deal with the faulty?
SENSE :
1, Our products are produced in a strict quality control system and the defective rate will be less than 0.1%.
2, For defective products in the warranty period, we will send new lights with new orders for small quantities.
3, For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the actual situation.

---
