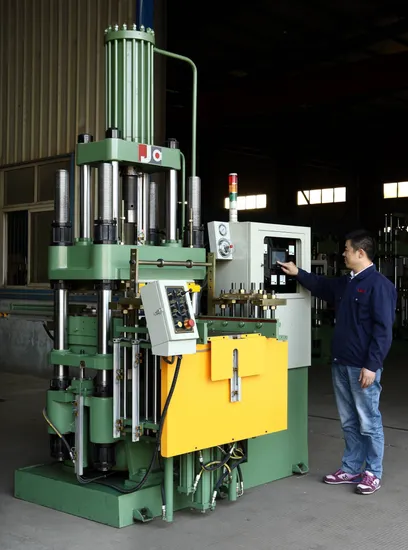

Rubber&Silicone Injection Molding Machine, Rubber Transfer Vulcanizing Press Machine

Product Description

Product Description Rubber Transfer type Molding Machine (KAUÇUK TRANSFER PRESS MAKİNESİ) can produce most of the products which can be produced by Rubber Injection Molding Machine,it can be regarded as an economic and simplified injection moldingmachine. It can be used for production of some complex shapes, metal insert rubber products and other rubber molding products with high precision and high performance requirements.
Product Parameters

Model	JC-YCB63T	JC-YCB100T	JC-YCB200T	JC-YCB300T	JC-YCB350T	JC-YCB500T
Tonnage	63T	100T	200T	300T	350T	500T
Max.system pressure	21 Mpa	21 Mpa	21 Mpa	21 Mpa	21 Mpa	21 Mpa
Rapid Clamping speed	≥60mm/s	≥60mm/s	≥60mm/s	≥60mm/s	≥50mm/s	≥50mm/s
Platen size(mm)	350x350 400x400	450x450 500x500	510x540 600x550	700x650	700x700	700x700 800x800 950x800
Max.daylihgt opening(mm)	350	350	400	400	400	400
Max.temperature(ºC)	250	250	250	250	250	250
Material barrel size(mm)	φ70x215	φ80x255	φ90x290	φ110x355	φ110x355	φ130x445
Injection pressure (Mpa)	60	60	60	100	100	100
Injection stroke(mm)	320	350	380	450	450	580
Max.ejector force	60KN	60KN	60KN	100KN	100KN	100KN
Ejector mechanism (optional)	2TR/3RT/4RT	2TR/3RT/4RT	2TR/3RT/4RT	2TR/3RT/4RT	2TR/3RT/4RT	2TR/3RT/4RT
Ejector stroke(mm)	250	250	300	350	400	450
Motor power(KW)	5.5	5.5	7.5	7.5	11	13
Heating power(KW)	9.6	9.6	18.6	20.6	20.6	27.8
Dimension(LxWxH:mm)	1600x1900x3000	1700x2100x3100	1950x2300x3250	2150x2600x3900	2550x3600x5250	2750x4200x5950
Oil tank capacity(Liters)	160	270	320	350	400	600

Exhibition
Packaging & Shipping

---
