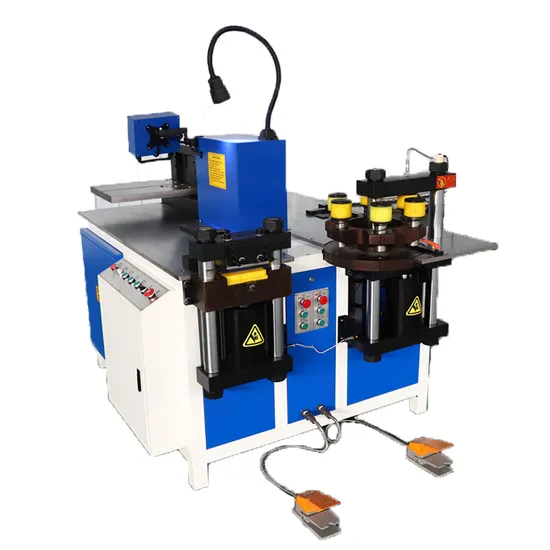

Bending, Punching, Shearing, Three-in-One Busbar Copper Plate Bending Machine

Product Description

Busbar processing machine is widely used in high and low voltage switchgear, transformer cabinet
manufacturing and other electrical appliances manufacturing industry. 1.The punching unit adopts a toothed six-die position one-piece turret structure, which guarantees
the absolute centering of the upper and lower dies, good visibility, high strength, and workers donot
need to change the dies frequently.
2.The bending machine adopts independent worktable, three processing units work at the same time
without affecting each other. Open bending to take and put the copper row more convenient, touch s-
creen control, so that the bending processing precision, efficiency and faster.
3.The system adopts Siemens PLC, equipped with 6 rela-ys to effectively prevent damage to the sys-
tem of electrical appliances
4.Shear unit cast iron one-piece thickened center beam, more durable. Adopting frustrated shear type
shearing, the shear opening is flat, no collapse, no burr, beautiful appearance, no waste when shearing.

Maximum punching force(KN)	400
Maximum processing thickness mm	16
Maximum shear force(KN)	500
Maximum shear thickness(mm)	16
Max. bending width(mm)	160
Bending width(mm)	30-100
Overall dimension(mm)	1780*1400*1200
Main motor power(KW)	3x4KW
Cutting mold	150mm
Punching processing range mm	Ф4.3- Ф36
Maximum processing width mm	160
Maximum shear width(mm)	160
Maximum bending force(KN)	400
Max. bending thickness(mm)	16
Minimum bending width of U-bend(mm)	50
Size of working table(mm)	1400x1250x1200
Machine weight(T)	1.5
Embossing mold	150x40

---
