Sunhans 15dBi 690~2700MHz Satellite Dish Omni Fiberglass Antenna for Mobile Signal Booster Amplifying Repeater

Product Description

Sunhans 15dBi 698-960MHz/ 1710-2700MHz 4G Mobile Signal Booster Omni Antenna with Waterproof
Product DescriptionFeature:Exquisite appearance.Good impact resistance,waterproofing and anti-corrosion ability.Full day working.Optimized dimension.High gain,low standing wave,strong anti-interference ability.

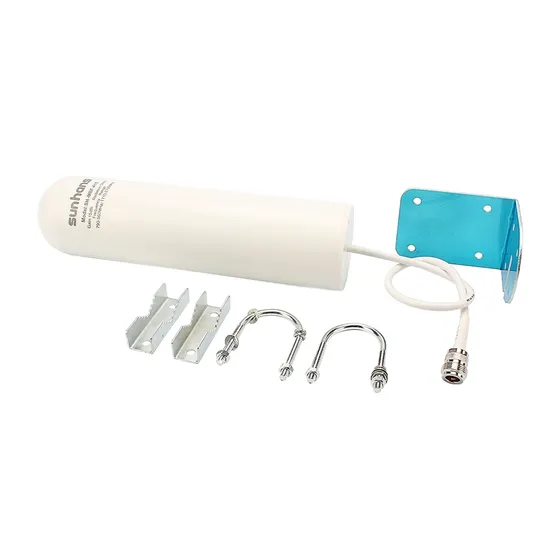

Detailed Photos
Product ParametersApplication
GSM/CDMA/PCS/3G/4G/WLAN system
Point-to-multipoint system

SH-MBF-A15 Electrical Specifications
Frequency range(MHz)	690~2700
Gain(dBi)	15
Half-power beam width(°)	H:360 V:55/30
VSWR	≤1.5
Input Impedance(Ω)	50
Polarization	Vertical
Maximum input power(W)	100
Lightning protection	DC Ground
Input connector type	N Female or Requested
Mechanical Specifications
Dimensions (mm)	Φ50*250
Antenna weight(kg)	0.5
Operating temperature(°c)	-40~60
Rated Wind Velocity(m/s)	60
Radome color	White
Mounting way	Pole-holding
Mounting hardware(mm)	¢35-¢50

Testing Report,VSWR Curve
Installation InstructionsAntenna Installation Instructions
1. Install as the picture below
2. Installation Steps
1. Place the M6 U-shape screw through the holes on the clamps to mount the antenna to the pole whose outer diameter is ¢35~¢50mm.Then put on the flat washer,the spring washer and twist all the nuts.
2.There should be at least three meters between the ground or floor and the antenna above.No huge building or metal object or any other obstacle or shelter nearby.
3.Adjust the mounting height of the antenna to the proper position to receive the best signal,then seal all the connections.
4.Please pay attention to lightning protection.Company ProfileAbout us
After Sales ServiceOur Service:
♦ Test process : every items will be testing before shipping, to make sure the quality.
♦ Short leading time: 1-2.5 working days for samples or small order, 10-15 working days for bulk order.
♦ One year warranty: for you without trouble of after-sales maintenance.
♦ Quality Guarantee: Return rate is only 0.001.
♦ Support small orders: help your business from small to big.
♦ OEM & ODM are welcome.

---
