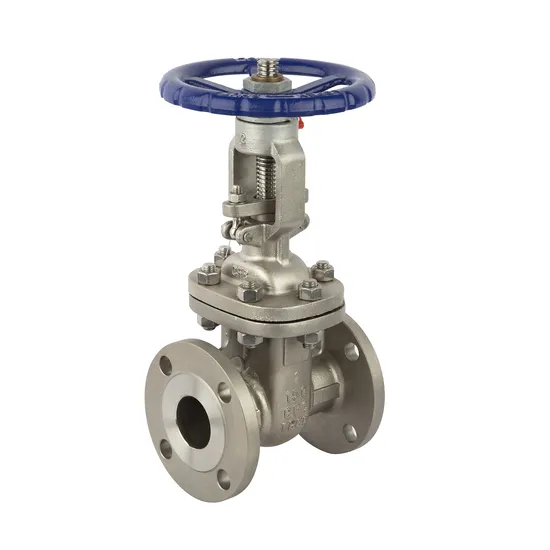

API600/B16.34/API 6D Cast Steel/Stainless Steel Wcb/CF8/CF8m Flanged&Butt Weld Flexible/Sloid Wedge Bb OS&Y Gate Valve 150lb/300lb/600lb/900lb Nace Mr 0175

Product Description

FEATURES&BENEFITS 2"~48" (DN50~DN1200) W. P.: Class150-2500 W. T.:-20ºC ~400ºC (-4ºF~752ºF) Design:API 6D/API 600/API 602 Flange Dimension:ASME B16.5 Face to Face:ASME B16.10 Rising stem Inspection and test :API 598/API 6D Material: WCB, WC6, WC9, LCB,CF8, CF3, CF8M, CF3M, CN7M, Monel and Hast. etc. Dics and Stem: WCB,SS304, SS316,SS304L,SS316L,SS410,SS416.etc Operation: Handwheel/Gear box Offshore /Oil /Gas /Chemical /Petrochemical Pulp /Paper /Water /Wastewater /Marine

ITEM	PARTS	MATERIAL
		Trim1	Trim5	Trim8
1	BODY	ASTM A216-WCB
2	SEAT RING	ASTM A216-WCB+Cr13	ASTM A105+STL#6	ASTM A105+STL#6
3	WEDGE	ASTM A216-WCB+Cr13	ASTM A105+STL#6	ASTM A216-WCB+Cr13
4	STEM	ASTM A182-F6a
5	GASKET	SPW SS 304+GRAPHITE
6	BONNET	ASTM A216-WCB
7	NUT	ASTM A194-2H
8	STUD	ASTM A193-B7
9	BACK SEAT	ASTM A276-410
10	PACKING A	GRAPHITE
11	SPACER RING	ASTM A276-410
12	PACKING B	GRAPHITE
13	PACKING C
14	GLAND	ASTM A276-410
15	GLAND FLANGE	ASTM A216-WCB
16	GREASE FITTING	CARBON STEEL
17	STEM BUSHING	ASTM A439 D-2
18	RETAINING NUT	ASTM A29-1025
19	HANDWHEEL	DUCTILE IRON
20	NUT	ASTM A29-1025
21	EYE BOLT	ASTM A193-B7
22	NUT	ASTM A194-2H
23	PIN	ASTM A29-1025

ANS1 Class150~ANS1 Class300 Dimension:

ANS1 Class150
NPS		2	21/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	36	40	42
L	RF	178	191	203	29	267	292	330	356	381	406	432	457	508	559	610	610	660	711	762	787
	BW	216	241	283	305	403	419	457	502	572	610	660	711	813	864	914	914	965	1016	1067	1118
Manual	H1	400	490	510	585	775	955	1160	1375	1570	1765	1980	-	-	-	-	-	-	-	-	-
	Do	200	200	250	300	350	350	400	450	500	600	700	-	-	-	-	-	-	-	-	-
Gear box	H2	-	-	-	-	-	-	-	-	1668	1920	2115	2215	2600	2908	3046	3136	3293	3726	4060	4229
Electrical	H3	-	-	-	-	-	-	-	-	1668	1920	2115	2215	2600	2908	3046	3136	3293	3726	4060	4229
ANS1 Class300
NPS		2	21/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	36	40	42
L	RF	216	241	283	305	406	419	457	502	762	838	914	991	1143	1245	1346	1697	1524	1727	-	-
	BW	216	241	283	305	406	419	457	502	762	838	914	991	1143	1245	1346	1697	1524	1727	-	-
Manual	H1	470	525	535	635	805	1025	1230	1460	1645	-	1840	-	-	-	-	-	-	-	-	-
	Do	200	200	300	300	350	400	450	500	600	-	600	-	-	-	-	-	-	-	-	-
Gear box	H2	-	-	-	-	-	-	-	-	-	-	1935	2155	2572	2908	3100	3135	3293	-	-	-
Electrical	H3	-	-	-	-	-	-	-	-	-	-	1935	2155	2572	2908	3100	3135	3293	3754	4120	4530

ANS1 Class600 Dimension:

ANS1 Class600
NPS		2	21/2	3	4	6	8	10	12	14	16	18	20	24	26	28	30
L	RF	292	330	356	432	559	660	787	838	889	990	1092	1194	1397	1448	1549	1651
	BW	292	330	356	432	559	660	787	838	889	990	1092	1194	1397	1448	1549	1651
Manual	H1	474	530	547	703	913	1077	1276	1499	-	-	-	-	-	-	-	-
	Do	250	250	300	350	450	500	600	680	-	-	-	-	-	-	-	-
Gear box	H2	-	-	-	-	-	-	-	1470	16250	2089	2211	2616	2921	2960	3050	3112
Electrical	H3	-	-	-	-	-	-	-	1470	16250	2089	2211	2616	2921	2960	3050	3112

FAQ
1 Are you a factory or trading company?
We are a factory specialized in manufacturing valves and ftting over 10 years.We have our own stainless steel foundry in Fujian province.
And we have got ISO9001&TS certificate of Manufacturing and processing of valves and fttings.
2 Where are the main markets for your products?
We hope to make business with companies from all over the world. And for now, our valves and fttings have
Been exported to especially in North America, South America, South Asia, Europe and Middle East.
3 Do you have a minimum quantity of the products?
No, we will build business with you with even 1PC. We believe this cooperation will be a long- term relationship for our high quality, competitive price and good after-sale service.
4 Are samples available to be sent with free?
It depends on what product you need. There are hundreds of products we sell. You can contact us for particular answer.
5 Can you print our Logo on the valves?
Yes, we can totally produce products according to your special request, even manufacture it base on your drawing.
6 What is your lead time?
It's around 15 days normally. If we have the products in stock, it will be about one week.
7 what is your payment term?
T/T 30% down payment, balance to be paid before shipment.
8 How can I check your factory situation w hile it's difficult for me to come to China?
We have photos and videos on our website and facebook, It shows every step of the manufacturing.
9 How can you guarantee the quality of products?
Firstly, we have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every valve or ftting we sell is qualified and release the test mill certificate. If possible, We can also send you the sample for checking. Regarding the details, we can discuss if you want to know more about it.
Jacky
ZHEJIANG LONGGONG VALVE TECHNOLOGY CO.,LTD
Web:wz-valve.en.made-in-china.com

---
