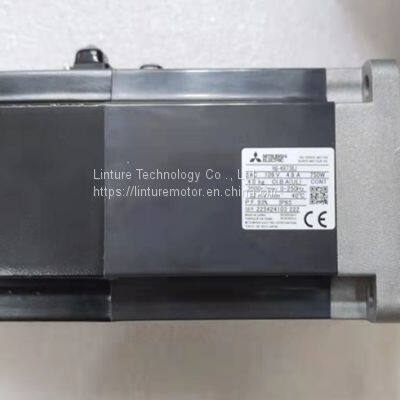

With Oil Seal V10 Vibration Level HG-KR73BJ Motor Manufacturer Mitsubishi

Product Details

Product Description

Product Description
continuous characteristic] rated output 750W, rated torque 2.4 N.m
[maximum torque] 8.4n m
[rated speed] 3000r / min
[maximum speed] 6000r / min
[instantaneous allowable speed] 6900r / min
[power ratio at continuous rated torque] standard 45.2kw/s, 41.6kw/s with
electromagnetic brake
[rated current] 4.8A
[maximum current] 17A
[inertia J] standard 1.26, with electromagnetic brake 1.37
[recommended load inertia ratio] less than 25 times
[speed and position detector] absolute position and increment share 22 bit
encoder (resolution per revolution of servo motor: 4194304pulses / Rev)
[oil seal] Yes
[heat resistant glass] 130 (b)
[structure] totally enclosed self cooling (protection grade: IP65)
[vibration level] v10
[allowable load of shaft] l 40mm, radial 392n, axial 147n
[weight] standard 2.8kg, with electromagnetic brake 3.8kg
Hg-kr43bj electromagnetic brake specification
[form] non excitation action type (spring braking) safety braking
[rated voltage] DC24V (- 10% ~ 0%)
[power consumption] 10W
[coil resistance] 57.0 Ω
[inductance] 0.13h
[static friction torque of electromagnetic braking] 2.4n m
[release delay time] 0.04 seconds
[braking delay time] DC cut-off 0.02 s
[allowable braking energy] 64j per braking and 640j per hour
[service life of electromagnetic brake] 20000 times of braking, 22j of single
braking

---
