Mini Light Disk Harrow Light Duty Disc Harrow Linkage for Small Garden Tractor

Product Description

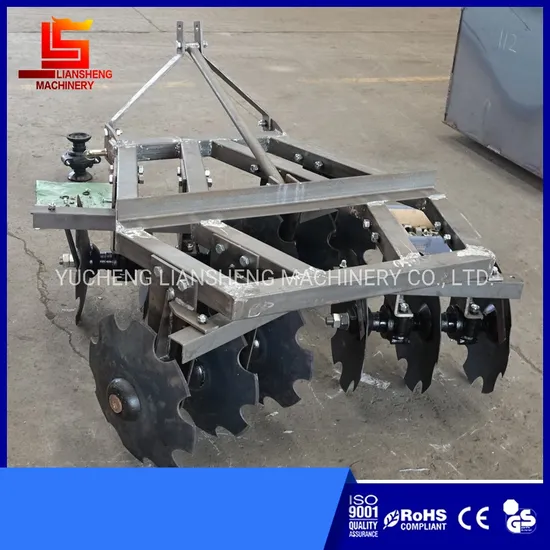

Mini light disk harrow light duty disc harrow linkage for small garden tractor
1BQD Series Opposed disc harrow is mainly using for the cleaning stubble before tillage, breaking the hardened surface, soil pulverization and leveling.
It is a mounted opposed light disc harrow for 30-60hp.
High efficiency.
Strong ability of soil pulverization.
The tractor without deflective trailed force.
The working depth of this mounted light disk harrow can be adjusted freely though adjust the angle between the disc frame.
65Mn spring steel disc blade, HRC: 38-44.

Model	Unit	1BQD-1.6	1BQD-2.0	1BQD-2.4
Working width	mm	1600	2000	2400
Working depth	mm	140
Q'ty of disc		16	20	24
Total weight	kg	460	490	520
Matched power	hp	30	40	50-60
Linkage		Three-point suspension I type		Three-point suspension II type

RFQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance
,balance before shippment.
If you have another question, pls feel free to contact us as below: Contact: Allen Gao

Web:lianshengmachinery.en.made-in-china.com
Yucheng Liansheng Machinery Co.,Ltd.
Yucheng City,Shandong Province, China

---
