Product Details
Product Description
Product Description
X/Y/Z Travel: 1100×600×700mm
Table Dimensions: 1200*600mm
Max. Table Load: 800Kg
Spindle Face to Worktable Height: 120—820mm
Positioning Accuracy: ±0.005/300mm
Repeatability: ±0.003/300mm
Tool Capacity: 24
Spindle Speed: 15000－20000Rpm
Moving Speed: 24m-36m/min
Cutting Speed: 10m-20m/min
Tool Change Time: 2 seconds
Dimensions (L/W/H): 3150×2750×3700
Machine Tool Weight: 6000Kg
Control Method: Fully closed-loop control
If necessary, please contact me WhatsAPP：8613510109008,
Email：sales@ssjjcnc.ru.

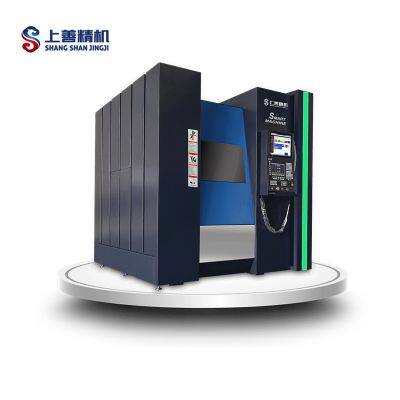

Graphite Machining Center – Vertical Milling
The Graphite Machining Center – Vertical Milling is a high-performance CNC machine designed specifically for the precision machining of graphite materials. Featuring a vertical milling configuration, this machining center is ideal for producing high-precision graphite parts, including electrodes, molds, and components used in industries such as electronics, aerospace, automotive, and mold-making. It offers a powerful, efficient solution for machining complex geometries with exceptional accuracy and surface finish quality.
Key Features:
Vertical Milling Configuration: The vertical design provides greater stability during machining, enabling high-precision cuts and minimizing vibrations. This ensures exceptional accuracy for intricate graphite parts.
2.Graphite-Specific Machining: Designed to handle the unique challenges of graphite, such as dust generation, brittleness, and material wear, this machining center maximizes tool life while ensuring smooth, high-quality finishes.
3.High-Speed Spindle: Equipped with a high-speed spindle, the machine allows for fast material removal and efficient processing of graphite components without compromising on the quality of the finished part.
4.Advanced CNC Control: The advanced CNC control system offers easy programming and real-time monitoring, allowing operators to optimize cutting paths and achieve the highest precision in machining operations.
5.Efficient Dust Extraction: A dedicated dust collection system captures graphite dust during the milling process, maintaining a cleaner work environment and improving both machine longevity and operator safety.
6.Rigid and Stable Structure: Built with a robust and stable frame, this machine ensures minimal movement during operation, enhancing precision and repeatability, even during high-speed machining.
7.Versatile Tooling and Clamping: The machine accommodates various tooling and clamping systems, allowing flexibility for a wide range of graphite workpieces, from prototypes to large-scale production.
>>
