| US$200.00-220.00 | 1 Piece (MOQ) |

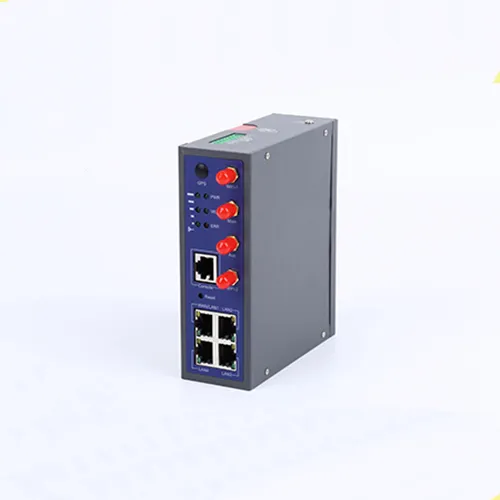

G51 series mobile wide-band router is a kind of internet of things wireless communication router, use WCDMA/HSUPA/HSPA+,EV-DO,LTE, etc ,to provide convenient and high speed network transmission function. It allows you to quickly add PoE power to your network, offer a simple and efficient way to power PoE devices like IP cameras, PoE access points, and other Edge equipment. |
| This series of product uses high performance industrial ARM Cortex A7 communication processor, flush bonding real-time operation system as software supporting platform. It provides safe, high speed, stable 4G wireless network, and provides, 2 SIM slots, 4 Gigabit LAN, 3XI/O and 2.4G + 5G dual band WIFI. It can be used in finance, postal, smart power grids, smart transportation, environment monitor, fire protection monitor, security, water conservancy, public safety, advertising release, industrial control, earth quake monitor, meteorological watch, instrument monitor etc. |
| Industrial design Use high performance industrial wireless module Use high performance industrial ARM Cortex A7 processor Support low power consumption Support mode customized Use plate metal CRS shell, heat dissipation is good Power source: 7.5V~32V DC(extended to be 36V) Degree of protection: IP34(Max IP51) Network characteristic Port flow detection Link real time monitoring Various VPN protocol(PPTP, L2TP, IPSec, VPN) Serial port DTU function supporting Support dial as required (audio, SMS, or data trigger) Support UPnP | Stability Use soft hardware watchdog and multi-level link detection , with capability of fault automatic diagnosis, automatic recovery, ensure equipment to work in stable and safe way Multiple equipment self-checking mechanism ESD protection for each port, prevent static shock Wireless network signal indicator light Remote management Remote parameter configuration Remote parameter backups Remote restart and log query Remote equipment upgrading Equipment online monitoring |
| Functions Support 4G network, down compatible 3G HSPA+/2G GPRS, EDGE Support 1*Gigabit WAN/LAN+3*Gigabit LAN, provide 1*RS232/485 interface(DTU) Support WIFI, IEEE802.11b/g/n and 802.11ac Support hardware WDT, provide anti-log off mechanism, ensure data terminal online forever Support PPTP, L2TP, IPSec, GRE, various VPN protocol Support SNMP management protocol Support 802.11n and 802.11ac dual band WiFi Support WiFi Portal(forced advertising push) | Support DHCP, DDNS, firewall, NAT, and DMZ Support ICMP, TCP, UDP, Telnet, FTP, HTTP, HTTPS protocol Support SIM/UIM card design Support base station and WiFi hybrid positioning Advanced Support WAN, wired and wireless backups(optional) Support 4xLAN(optional) Support GPS / beidou positioning(optional) Support build-in storage, 8G-64G(optional) Support customization |
| Wireless | |
| Module: | Industrial wireless model |
| Frequency band: | FDD-LTE(Band 1 / 3 / 5 / 7 / 8 / 20 / 28), (Band 1 / 2 / 4 / 5 / 7 / 8 / 12 / 13 / 17 / 25 / 26) TDD-LTE(Band 38 / 39 / 40 / 41) HSPA(850 / 900 / 1900 / 2100MHz), GSM(850 / 900 / 1800 / 1900MHz) EV-DO(800MHz), TD-Scdma(Band 34 / 39)LTE Wordwide frequency is acceptable. |
| Theory bandwidth: | HSPA+: 5.76 / 21Mbps; FDD/TDD LTE: 150(Cat4) / 600Mbps (Cat11, MIMO) |
| Transmit power: Power consumption: | <24dBm @25ºC Data mode: <300mA/12V; Idle mode: <165mA/12V |
| Receive sensitivity: | <-97dBm @10MHz QPSK |
| WiFi | |
| Bandwidth: | Support IEEE802.11b/g/n and 802.11ac,Max: 300Mbps / 866Mbps |
| Security Encryption: | Support WEP,WPA,WPA2 etc.,optional for WPS function |
| Transmit power | 16-17dBm(11g),18-20dBm(11b)15dBm (11n ) |
| Receive sensitivity | <-72dBm@54Mpbs |
| Interface | |
| LAN: | 3*LAN Gigabit Ethernet interface(RJ45), self-adaption MDI/MDIX, built-in electromagnetism insulation blocking |
| WAN: | 1*WAN interface, self-adaption MDI/MDIX, built-in electromagnetism insulation Blocking(optional for LAN port) |
| Console: | Equipment control port(RJ45), support hardware control RS232 communication(115200) |
| Indicator light: | 6 indicators, "Power", "WLAN", "Error" and 3 signal lights(1: bad, 2: good, 3: perfect) |
| Antenna interface: | 5*SMA antenna interface(Wi-Fi x 2, GPS and 4G MIMO x 2), 50Ω |
| SIM/UIM: | SIM/UIM, Industrial SIM slot, prevent SIM from falling; 1.8V/3V auto detection |
| Power: | 7.5V~32V(standard DC12V/1.5A), built-in power instant overvoltage protection |
| Reset: | |
| | |
| Power supply Standard: DC 12V/1.5A Appearance Casing:Metal Dimension:132x112x44mm Weight: about 480g | Others CPU: Cortex A7 Core. 900MHz / 867Mbps Flash/RAM:128Mb / 1Gb DDR3 Working temp: -30~+75ºC Storage temp: -40~+85ºC Related humidity: < 95% non-condensing |
