5L 10L 20L Lab Chemical Vacuum Short Path Evaporator Price Wiped Film Distillation Equipment Turnkey System Short Path Distillation Kit

Product Description

USA In-stock 5L 10L 20L Lab Chemical Vacuum Short Path Evaporator Kit Price Wiped Film Distillation Equipment Turn Key System Unit Short Path Distillation
Product Description
Short path distillation is mainly used for enrichment, crystallization, separation, drug extraction, solvent recycling, pharmaceutical and biological industry, etc. In vacuum conditions, the material was heated and mixed with constant speed rotation in the evaporating flask by the electric mantle. A large area of thin film spreads on the cylinder glass wall. With efficient glass condenser, recycling collection, and dissolved steam, improve the efficiency of evaporation. It is suitable for intensive purification of biological products, especially suitable for high-temperature decomposition.
Cash Payment is Available in Los Angeles!
Lab Equipment in USA Warehouse, Canada Warehouse, Spain Warehouse!
No Customs Clearance, Pick up by yourself!
We provide 2L, 5L, 10L, 20L short path distillation. There are complete set ancillary devices of short path distillation including vacuum pump, heating mantle and circulating chiller for sale. Both 110V and 220V are available.
Product Features
Features of Short Path Distiller System:
1) The extended necks design increases the contact area for better sealing performance.
2) SUS304 keck clamps are used between the interfaces for quick installation and disassembly.
3) There are multiple sets of vigreux at the bottom of the distillation head which can make the flow of steam slowly, while other fillers can be added as required.
4) Anti-reflux design at the front of the distillation head prevents excessive evaporation from backflow.
5) Needle vacuum valve design at the top of the receiving flask to realize continuous collection without stopping.
6) Through the rotation of magnetic agitator (100-2500rpm) to drive the material rotation, so that the sample is evenly mixed, to adapt to highly viscous materials.
7) Flexible choice of vacuum pump, or thermostat.

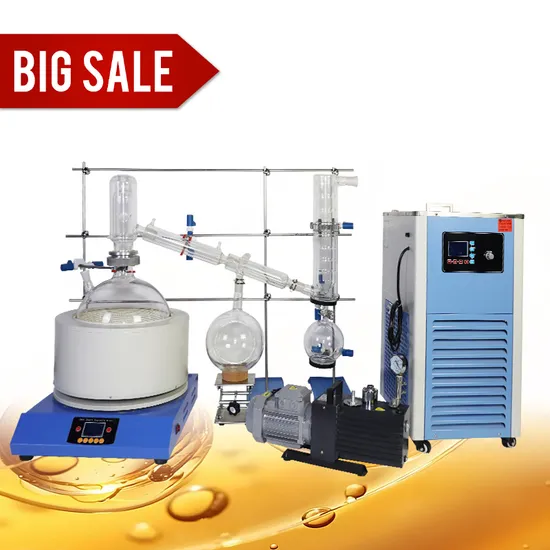

SPD-20L Short Path Distillation Kit
ZNCL-T-20L Heating Mantle	Magnetic stirring heating mantle 20L, 1800W, 380 ºC
Boiling Flask Sizes	20L, 80mm Flange Main, 24/40 Side
Distillation Head Joint Sizes	80mm Flange Bottom, 34/45 Top, 34/45 Side
Condenser Joint Sizes	34/45 Inlet , 34/45 Outlet
Isolation Adapter Joint Sizes	34/45 Inlet , 34/45 Outlet, 29/40 Bottom Discharge
Receiving Flask	5000ml * 1, 29/40
Cold trap Joint Size	34/45 Inlet, 34/45 Outlet, 2L round bottom flask with 35 ball joint
Clamp	Cross clamp*5, Three-finger clamp*2
Thermometer	Digital thermometer *1
Other Parts	Iron stand, Lab jack, Cork, Hose fitting, Tubes, Clips
Batch Time	4-10 Hours
Optimal Capacity	7000 - 12000 ml

Company Profile
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company. The main products are rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low-temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, blast drying oven, freeze dryer, water/oil bath, magnetic heating stirrer, overhead mixer, ultrasonic cleaning machine, lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high praise in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt, etc. countries and our customers have been fully affirmation.
Factory Size: 1,000-3,000 square meters
Year Established: 2009
Total Revenue: US$1 Million - US$2.5 Million
Registration No.: 410105000067362
Main Markets: Central America, Mid East, Oceania, Africa, South America
Packaging & Shipping

Packaging:
-After use cartons inside, outside with wooden case packaging;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEx and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.

Shipping method	Note
Express	Door to door, very convenient, don't need to clearance or pick-up
By air	Airport to an airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you.
By sea	Port to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you.

Pre-sale Service:
--24 Hours online service for your consultation.
--Help choose right model, and a series of services, people, and advice.
--Give you the best offer.
--Provide discount for many sets order.
--Do customer's request.
--Choose payment term you convenient.
--Promptly production and delivery, inform you in time.
--Can provide invoice value as you like to decrease your tax.
After-sale service:
--1 year warranty service and all life maintenance.
--Technical Engineers are available for overseas training.
--Remote control technical consult.
--Free installation DVD.
--Maintenance plan.
FAQ
1. How will package glass equipment be?
We package these glass equipment in good and Nonfumigation standard wooden cases.
2. What size do you have?
We can offer you 2L, 5L, 10L, and 20L.
3. What can do with the vacuum distillation equipment?
Mainly Vacuum distillation for plant essential oil.
4. Can you offer supporting facilities?
Yes, we can offer you the vacuum pump, heating, and cooling system as you demand.
5. What's the minimum order quantity?
No limit at present.
