Pre-Forming Cold Press for Woodworking Machinery

Product Description

Pre-Forming Cold Press1.Introduction:

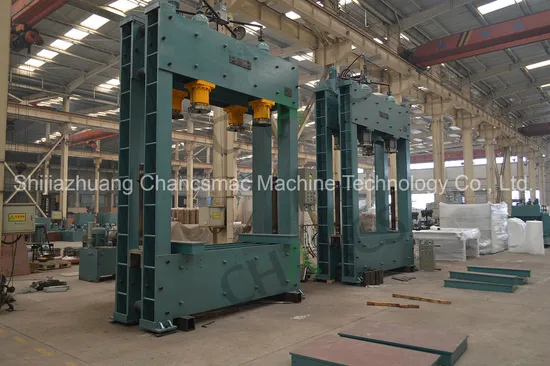

Pre-Forming Cold Press Machine is designed for plywood pre-forming.The Pressure and working table size can be customized.
2.Parameter:

Product name	PRE-FORMING PRESS (COLD PRESS MACHINE)
Model	BY814X8/35	BY814X8/50	BY814×8/80
Voltage	3PE 380V 50Hz or customized voltage
Total pressure	3500KN	5000KN	8000kN
Working layer	1 layer	1 layer	1 layer
Working table Size	2700x1370mm	2700x1370mm	2700x1370mm
Opening	1300mm	1500mm	1500mm
Stroke	1000mm	1000mm	1000mm
Main cylinder No.& Dia	4-φ190mm	4-φ240mm	6-φ240mm
Raising cylinder No.& Dia	2-φ85mm	2-φ85mm	2-φ85mm
Installation power	5.5kw	5.5kw	5.5kw
Loading way	Length side, Manually
Close speed	50mm/s	50mm/s	50mm/s
Overall size	3730x1940x4740mm	3730×1940×5410mm	3730×2090×5960mm
Gross Weight	About 15130 kg	About 17520 kg	About 19670 kg

3.Processing in factory:
4.After-sale service:
1. Engineers available to serve and train customers overseas.
2. Machine guarantee is one year.
3. English manual and PPT installation and operation file with pictures step by step.
4. Whole life technical support for CHANCSMAC machinery.
5.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact us
1. Q: What's the MOQ?
R: One set will be ok.
2. Q: Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q: What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after inspection.
4. Q: What is the warranty time?
R: One year.

---
