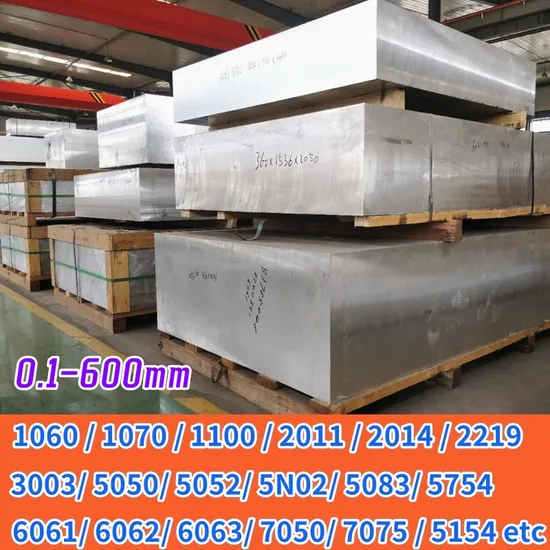

Aluminium Sheet /Aluminum Plate/Block/Checkered Plate/Coil/Section/Flat Bar/Square Pipe (1060/1070/1100/2014/2024/3003/5052/5754/5083/6061/6062/6063/7050/7075)

Product Description

Description
Thickness		0.1mm - 6.0mm (Aluminum Sheet)
		6.0mm - 600mm (Aluminum Plate)
Width		2mm - 2800mm
Length		1m, 2m,3m, 6m, 8m, up to 16m
Temper		O, H12, H22, H32, H14, H24, H34, H16, H26, H36, H18, H28, H38, H19, H25, H27,H111, H112,H241, H332, T3, T4, T5, T6, T651, T3651, T451, T42, T62 etc.
Surface		Mill Finished, Anodized, Embossed, PVC Coated, Hairline ,Oxidation ,Mirror ,etc .
Standard		ASTM B209, ASTM B928, GB/T 3880, JIS H4000-2006, DIN EN 573-1, etc
Grade
1000 Series:		1050, 1060, 1070, 1050A, 1350, 1145, 1035, 1100, 1200, 1235
2000 Series:		2011, 2014, 2014A, 2214, 2017, 2017A, 2117, 2218, 2618, 2219, 2024, 2124
3000 Series:		3103, 3004, 3005, 3105, 3003
5000 Series:		5005, 5019, 5050, 5251, 5052, 5154, 5454, 5554, 5754, 5056, 5356, 5456, 5082, 5182, 5083, 5A06 5A03 ,5183, 5086,
6000 Series:		6101, 6101A, , 6005, 6005A, 6351, 6060, 6061, 6063, 6063A, 6070, 6181, 6082
7000 Series:		7003, 7005, 7020, 7022, 7050, 7075, 7475
Application
1000 Series	1050	Insulation, food industry, decoration, lamp, traffic signs, etc.
	1060	Fan blade, Lamps and lanterns, Capacitor shell, Auto parts, Welding parts.
	1070	Capacitor, Rear panel of vehicle refrigerator, charging point, heat sink, etc
	1100	Cooker, building material, printing, heat exchanger, bottle cap, etc
2000 Series	2A12	Aircraft structures, rivets, aviation, machinery, missile components, the card wheel hub, propeller components, aerospace parts,car parts and various other structural parts.
	2014
	2024
	2017
3000 Series	3003	Aluminum curtain wall panel, aluminum Ceiling, Electric cooker bottom, TV LCD backboard, storage tank, curtain wall, building construction panel heat sink, billboard. Industrial floor, air conditioning, refrigerators radiators, Make-up board, Prefabricated house etc.
	3004
	3005
	3104
	3105
5000 Series	5005	Marine applications, bodies of boats, buses, trucks, and trailers. Curtain wall panel.
	5052	Marine and transportation material, railway carriage's inner and outer cabinet, oil and chemical industry storage devices, equipment and medical device panel, etc.
	5083	Tanker, oil storage tank, drilling platform, shipboard, deck, bottom, welded parts and edge panel, railway carriage's board, automotive and aircraft panel, cooling device, and automotive molding, etc.
	5086
	5182
	5252
	5454
	5754	Tanker body, marine facilities, pressure container, transportation etc.
6000 Series	6005	Railway inside and outside parts, board, and bed plate. Industry molding Highly stressed applications include Roofing construction, transportation, and marine as well as mold. Auto parts, architectural fabrication, window and door frames, aluminum furniture, electronic components as well as various consumer durable products.
	6060
	6061
	6063
	6082
	6101
7000 Series	7005	Truss, rod/bar, and the container in transportation vehicles; Large-sized heat exchangers.
	7050	Molding (bottles) mode, ultrasonic plastic welding mold, golf head, shoe mold, paper and plastic molding, foam molding, lost wax mold, templates, fixtures, machinery and equipment.
	7075	Aerospace industry, electronic etc.

Aluminum Sheet1. Thickness: 0.1mm to 3.0mm2. Width: Upto 2000mm3. Lenth: as the requirement4. Standard size: 1000*2000, 4'*8', 5'*10', 1250*2500,1500*30005. Standard: ASTM B209, ASTM B928, GB/T 3880, JIS H4000-2006, DIN EN 573-1, etc6. Surface: mill, bright, polished, hairline, brush, sand blast, checkered, embossed, etching, etc
7. Temper: F, O, H12, H14, H24, H18, H112, H111, T4, T3, T5, T6, T651, T7651,T7351, etc.
8. MTC: EN 10204-3., EN 10204-3.2, ISO9001, 3rd party inspect report
9. Technique: DC/CC
10. Anodized: Available
Aluminum Plate
1. Thickness: 3.0mm to 600mm
2. Width: Upto 2800mm
3. Lenth: as the requirement
4. Standard size: 1000*2000, 4'*8', 5'*10', 1250*2500,1500*3000
5. Standard: ASTM B209, ASTM B928, GB/T 3880, JIS H4000-2006, DIN EN 573-1, etc
6. Surface: mill, bright, polished, hairline, brush, sand blast, checkered, embossed, etching, etc
7. Temper: F, O, H12, H14, H24, H18, H112, H111, T4, T3, T5, T6, T651, T7651,T7351, etc.
8. MTC: EN 10204-3., EN 10204-3.2, ISO9001, 3rd party inspect report
9. Technique: DC/CC
10. Anodized: Available
11. Processing Service: Bending, Welding, Decoiling, Punching, Cutting, etc. Aluminum Checker Sheet
1. Thickness: 0.3mm to 6.0mm
2. Width: Upto 1500mm
3. Lenth: as the requirement
4. Standard size: 1000*2000, 4'*8', 5'*10', 1250*2500,1500*3000
5. Standard: ASTM B209, ASTM B928, GB/T 3880, JIS H4000-2006, DIN EN 573-1, etc
6. Temper: F, O, H12, H14, H24, H18, H112, H111, T4, T3, T5, T6, T651, T7651,T7351, etc.
7. MTC: EN 10204-3., EN 10204-3.2, ISO9001, 3rd party inspect report
8. Pattern: 1 bar, 2 bars, five bars, lentils, willow leaf, or diamond pattern
9. Theoretical Weight: Plus 0.6kg/sqm
10. Material: 1050, 1060, 1100, 3003, 3105, 4017, 5052, 5083, 5086, 5754, 6061, 6063 Aluminum Circle
1. Thickness: 0.1mm to 3.0mm
2. Diameter: Upto 600mm
3. Standard: ASTM B209, ASTM B928, GB/T 3880, JIS H4000-2006, DIN EN 573-1, etc
6. Surface: mill finish, anodized, etc
7. Temper: O, H12, H14, H22, H24, etc.
8. MTC: EN 10204-3., EN 10204-3.2, ISO9001, 3rd party inspect report
9. Technique: DC/CC(DC For cookware and CC for road sign)
10. Anodized: Available
11. Material Grade: 1050, 1060, 1100, 3003, 3004, 3105
------- Product Display -------

Certificate
COMPANY PROFILE DSW is a professional exporter of metal material products in China, located in Tianjin City. Our company was established in 2011. After more than 13 years of development, we have become the leader in the north China market in metal material products. We have more than 30, 000 tons of perennial stock. DSW stocks and processes Tubes, Pipes, Bars, Extrusions, strips, Foil, Sheets, and Plates in stainless, aluminum, nickel, titanium, and nickel alloy.
We are specialized in metal material products, especially in Stainless steel tubes/ pipes, Seamless stainless steel tubes, Welded stainless steel tubes, Stainless steel sheets/ plates/ coils/ strips/ round bars/ angles/ flat bar/ square bar, Alloy steel pipe/ sheet/plate/coils/ bar, Seamless steel pipe/ tube, Galvanized steel coils, Color coated steel coils, Aluminum sheet/ coil /foil/ roll/round bar/pipe/angle bar/ flat bar, Nickel Alloy Bar, Nickel alloy sheet, Nickel alloy pipe, Copper bar, Copper pipe, Copper sheet, Titanium bar, Titanium sheet, Titanium pipe and so on.
We work with TISCO, LISCO, BAO Steel, TPCO, and almost all the famous mills in China.
We will try our best products and best service to welcome your cooperation.Packing & Shipping
FAQ
Q1:Are you trading company or manufacturer ?
A: We are manufacturer.
Our main products are aluminum, stainless steel plate,copper etc.
Q2. How do you control quality?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO, SGS Verified.
Q3: What are the terms of packing?
A3: Generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as per the customer's requirement.
Q4:What is your delivery time?
A4: For stocks, we could transport the goods to the loading port within 7 days after we received your deposit
The production period usually takes about 15 days-30 days after receiving the deposit.
Q5. What are the advantages of your company?
A5: We have many professionals, technical personnel, more competitive prices, and the best after-sales service than other stainless steel companies.
Q6. How many countries have you already exported to?
A6: Exported to more than 50 countries mainly from America, Russia, the UK, Kuwait, Egypt, Turkey, Jordan, India, etc.
Q7. Do you provide samples ? is it free or extra ?
A7: Small samples in store and can provide the samples for free. Customized samples will take about 5-7days.

---
