Product Details
Product Description
Product Description
Detail

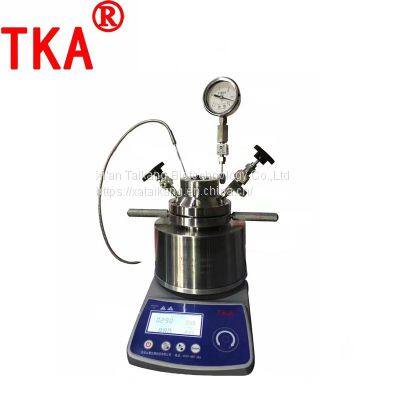

When this product is used for chemical and chemical high-pressure synthesis or catalytic reaction, it is necessary to measure the temperature, measure the rotational speed, add inert gas, stabilize the pressure and realize the required experimental environment such as online sampling at the same time.
Technical highlights
1. The entire reaction process can be observed during the reaction.
2. The observation window adopts JGS2 high transmittance quartz glass to realize online photochemical reaction under high pressure.
Application example
suitable for photochemical high pressure reaction, carbon dioxide CO2 reduction, carbon dioxide CO2 reduction to methanol
Reduction of carbon dioxide CO2 to methane CH4, reduction and degradation of nitrogen oxides NOx, high-pressure photocatalytic degradation of formaldehyde
solution, etc. Photocatalytic reaction, Fischer-Tropsch reaction, hydrogenation reaction, polymerization reaction, homogeneous reaction and carbon dioxide supercritical reaction, etc.
Technical Parameters
Model
| Size
| Volume
| Connection methods
| Hole diameter
| Intelligent safety vave
| Display precision
|
WCGF-25ML
| Φ40*60
| 25ml
| Screw thread
| 30mm
| Yes
| ±1ºC
|
WCGF-50ML
| Φ60*80
| 50ml
| Flange
| 40mm
| Yes
| ±1ºC
|
WCGF-100ML
| Φ80*120
| 100ml
| Flange
| 40mm
| Yes
| ±1ºC
|
WCGF-200ML
| Φ80*140
| 200ml
| Flange
| 60mm
| Yes
| ±1ºC
|
WCGF-500ML
| Φ100*240
| 500ml
| Flange
| 60mm
| Yes
| ±1ºC
|
Kettle material
| Sapphire or imported quartz glass
|
Design woring teperature
| 150ºC/250ºC(Optional)
|
Operating pressure
| ≤19.9Mpa(Sapphire),≤9.9Mpa(Quartz glass)
|
Valve and connection material
| SU316L stainless steel
|
With temperature control heating device and computer program heating transfer design.
|
With gas in, out function
|
With online pressure display function
|
The bottom with strong magnetic stirring function(High viscosity or large particle solid can be selected our company's overhead mechanical stirring methods.
|
With high precision adjustable automatic ovepressure relief protection function.
|
>>
