Product Details
Product Description
Product Description

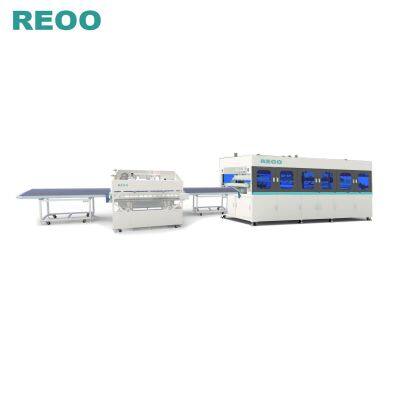

Solar Cell Stringer Laying Up Machine And Bussing Machine
Product Description
It is a high-speed , high-precision solar cell bussing machine, It can process laying up and bussing auomaticlly . Canproduce smaller and big solar panels.
Related Parameters
Producrt Features
1, High compatibility: 50-550W solar panel can be compatible;
2, High speed: Double string simultaneous typesetting, 4 string simultaneous typesetting;
3, The soalr cell specifications compatibility: Compatible with 156mm, 158mm, 166mm, 182mm, 210mm;
4, Strong compatibility: small solar module, halfsolar module, complete solar module can be compatible;5, Different versions, different forms of solar module specifications switching speed is fast and convenient
2. Technical parameters
No.
| Item
| Description |
1
| Model
| RO-PB05A
|
| 2 | Operating speed (Maximum single-cycle speed) | 4 strings simultaneously typesetting: 15 seconds /4 strings,2strings simultaneously typesetting: 15 seconds /2 strings |
| 3 | Operating speed (Usual speed) | 15 - 20 seconds/cycle |
4
| Location mode | Mechanical positioning |
5
| Applicable bus bar | 5BB 6BB 9BB 10BB 11BB 12BB-20BB |
6
| Applicable version ( Minimum ~ Maximum ) | 50W ~ 550W ( 350*600 * 1300*2400mm ) |
| 7 | Applicable solar cell specifications (size)
| 156 158 166 182 210mm
|
| 8 | Applicable solar cell size ( Thickness)
| More than 130μm
|
| 9 | Number of strings (minimum number of strings)
| 1pcs ~ Glass size
|
| 10 | Number of strings (Max.)
| 2400mm
|
| 11 | String spacing
| 1 - 5mm(special specifications can be customized
|
| 12 | Specification brand of parts
| Servo motor: Huichuan,Cylinder: Airtek,PLC: Huichuan,Touchscreen: Kunlun mode
|
| 13 | Power supply (Applicable power)
| 220v / 3KW /5KW
|
| 14 | Average air consumption
| 100L/min
|
| 15 | Weight
| 1000kg
|
| 16 | Measument | 7800×3000×1500 mm |
Detailed Images
Packing & Delivery
Packing:
1) All the equipment, tools, accessories and goods are suitably packed.
2) All packages are liable to be opened for customs' examination.
3) All the packages are designed to facilitate.
4) Each package has the printed shipment information.
Delivery time:
Around 30 days after received the advance payment.
Certifications
Our Services
Installation:
We arrange our engineers to buyer’s factory to install machine.
All expenditure on travel, food,accommodation and transportation of our engineers/ technicians for installation will be borne by buyer. REOO company borne the salary of engineer/technicians.
Training:
We supply both overseas and local training to the engineers and technicians on operation and maintenance.
Buyer borne air tickets, lodging, food and training material .
Manuals/Documents:
Operational and maintenance manuals of all equipment is in English, along with a soft copy in a CD
(compatible version: MS Word/ PDF).
Raw material:
We supply all the material for production solar panel from China for trial production and formal production,
buyer pay for the cost.
Our Company
REOO Technology Co., Ltd. is a leading manufacturer for solar panel assembly production line in China. We
have 9 years history to manufacture all size of laminator also whole of production line. We have a great deal of experience for design, manufacturing, shipping, installation, commissioning and training for solar panel production line . We have exported many of production line to other countries. This specification include design, manufacturing, shipping, testing and commissioning of assembling plant of solar panel on turn key basis. The assembling plant should have a production capacity of 1 MW/year considering 80% uptime and single shift of operation.
Contact us
MRS. Holly
NANTONG REOO TECHNOLOGY CO,. LTD
website:
Add: Chennan industrial park, Juegang, Rudong, Jiangsu, China P.C.: 226400
Tel: +86-513-8410 5399 Fax: +86-513-8410 5505 Mobile: +86 13773695989
Skype: REOO Holly WhatsApp: 008613773695989 Wechat: +86 18951327598
>>
