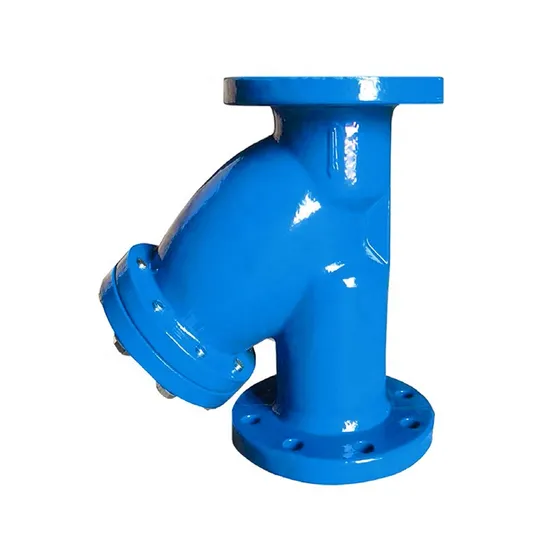

DIN3202 Pn16 Ductile Iron Y Filter Strainer Factory

Product Description

DIN3202 PN16 Ductile Iron Y Filter Strainer Factory Product Description Y Strainer is device for mechanically removing unwanted solids from liquids, gas or steam lines by means of a perforated or wire mesh straining element. It is used in pipelines to protect pumps, meters, control valves, steam traps, regulators and other process equipment.
TECHNICAL SPECIFICATIONS
PN10 / PN16 / 125LB / 150LB / JIS10K / 150PSI / 200PSI
Materials: cast iron A126 B (GG25), ductile iron A536 65-45-12 (GGG40)
Applicable medium: water, oil, gas
Applicable temperature: -10~+80ºC
STANDARDS
Design & manufacturing: ASME B16.34
Face to face: GB/12221, ANSI B16.10, EN 558-1
Flanged ends: GB/T17241.6, ANSI B16.1/5, EN 1092, JIS10K, AS 2129
Inspection & testing: API598, GB13927
FEATURES
Main parts of all kinds of pumps, valves in the pipeline
Mainly used to filter dirt, rust and other debris.

No.	Part name	Material	Standard
1	Body	Ductile Iron	ASTM A536
2	Screen	Stainless Steel	ASTM A370
3	Seating	Rubber
4	Bonnet	Ductile Iron	ASTM A536
5	Bolt	Stainless Steel	ASTM A370

Detailed Photos
Packaging
Related Products
Factory Show
Company Profile

---
