Centimeter-Level Cors Differential Survey Equipment GPS Receiver Gis M9 Stonex Esurvey Esa2

Product Description

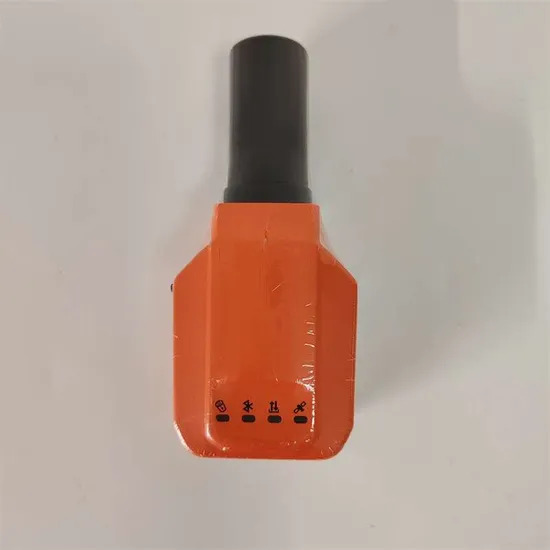

Product Description PORTABLE SMART ANTENNA FOR GIS APPLICATIONS The Stonex M9 is an easy-to-use, wearable, portable smart antenna that provides professional-level positioning data to any Android devices. And with the designated app support, the M9 can be paired with iOS devices as you wish.

Specifications

Channels	1408
Satellites tracking	GPS: L1C/A, L2P(Y), L2C, L5 GLONASS: L1, L2 GALILEO: E1, E5a, E5b, E6 BDS: B1I, B2I, B3I, B1C, B2a, B2b QZSS: L1, L2, L5, L6 SBAS:Support
Position accuracy	RTK H: 2 cm+1ppm, V: 3cm+1ppm Single H: 1.5 m, V: 2.5 m
Initialization time	≤5 seconds (Typical)
Cold start	≤30 seconds
Hot start	≤3 seconds
Speed accuracy	≤0.03 m/s
Electrical
Battery	Built-in, Non-replaceable, Lithium Polymer Battery 7.4 V / 1800 mAh.
Working time	≥10 hours
Input voltage	5V dc / 2A
Data Interface
Bluetooth	Yes
Type-C port	1 Type-C port
User Interface
Button	Power button x1
Indicator	Power indicator x1 Bluetooth indicator x1 Differential data indicator x1 Satellite indicator x1
Buzzer	Yes
Physical
Dimension	118 mm x 52 mm x 36 mm
Weight	≤210 g
Environment
Operating temperature	-20ºC - +75ºC
Storage temperature	-40ºC - +85ºC
Water/dust-proof	IP67
Shock resistance	1.6 m free drop
Humidity	95% No condensation

Company Profile Shanghai Apekstool was founded and based in Shanghai, specializing in the manufacturing and sales of Surveying equipment. We are dedicated to being a professional provider for survey equipment. Our goal is to provide the best products and excellent service to our customers all over the world.We have been involved in the geographic mapping industry for 10 years. We supply all products with reasonable prices and real-time support upon our own professional experience and high-quality supply chain. Like gnss rtk, total station, theodolite, auto level, rotary laser level, laser level and surveying accessories. We have sold to more than 156 countries and build our stable market.We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save so much time for communication. Our business is growing and we invite you to be part of the success.



Customer Case

Multi brand GNSS We focus on Hi target, CHCNAV, EFIX, FOIF, STONEX, SOUTH , KOLIDA ,RUIDE, Unistrong, E-survey GNSS, Geomax , Sunway, Stonex, Hi target and Kolida total station. Including surveying accessories pole , tripod, tribrach, prism and leveling staff.

---
