a to Z Fully Automatic Plastic Bottle Blowing Making Pet Bottle Blow Moulding Machines

Product Description

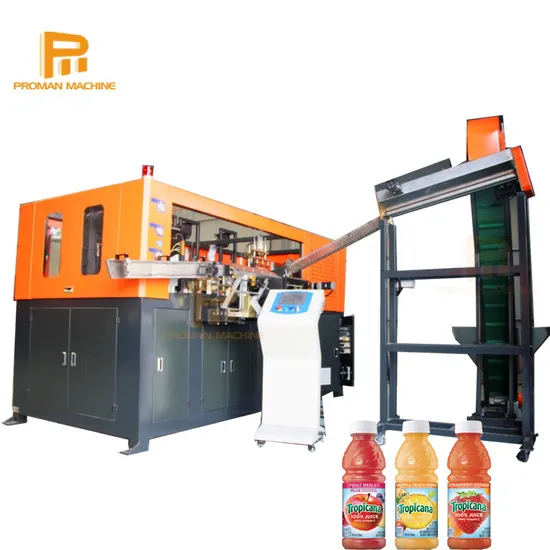

A to Z fully automatic plastic bottle blowing making PET bottle blow moulding machines
The Automatic PET bottle blowing machine is suitable for the production of 0.1L-2.0L plastic containers and round and square bottles.
Fully automatic blow molding machine, freeing hands all the time, automatically adding preforms, automatic molding.
PLC controller, easy to operate, make different molds according to different customer products, and produce suitable products.
The whole Automatic PET bottle blowing machine adopts SS304 material, and the thickness is higher than that of the same industry machine. More efficient.
Main Features for PET Bottle Blowing Machine 1. Stable performance with advanced PLC.
2. Automatic preform conveyer to save human cost.
3. Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4. High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5. High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6. Introduce the FESTO air cylinder to avoid contamination and noise.
7. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine. 8. Strong clamping force with high pressure and double crank links to lock the mould.
9. Two ways of operating: Automatic and manual.
10. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
11. Contamination is avoided for the bottle body.
12. Ideal effect of the chilling with the chilling system.
13. Easy installation and starting
14. Safereliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
Cylinder of PET Bottle Blowing Machine
Brand: FESTO
Original: Germany
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Holding Part of PET Bottle Blowing Machine
Brand:KTO
Original: Germany
With Strong catching preform convey to the next step
Blowing cylinder of PET Bottle Blowing Machine
Brand: FESTO
Original: Germany
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
Air compressor,filter,air tank
Brand: Hengda
Original: China
Complete supply the machine with required gas.
Technical Parametersfor PET Bottle Blowing Machine

Model	Item	PM-A2	PM-A4	PM-A6
Produtivity	Depend on bottle design	1800-2000 PCS/H	3200-4000 PCS/H	4000-5500 PCS/H
Product type	Volume	0.1-2.0L	0.1-2.0L	0.1-2.0L
	Body diameter	≤100mm	≤100mm	≤100mm
	Height	≤310mm	≤310mm	≤330mm
	Neck diameter	≤38mm	≤38mm	≤38mm
Mold	Cavity	2	4	6
	Mold thickness	240mm	240mm	240mm
	Mold volume	260*240*370mm	510*240*360mm	640*240*360
Main machine Power	Electrical source power	220V/380V 50/60HZ
		3Phase	3Phase	3Phase
	Rated Power	25KW	49KW	73KW
	Really use power	6.5KW	13	25
Air system	HP air compressor	1.6m3/min 3.0Mpa	3.0m3/min 3.0Mpa	6.0m3/min 3.0Mpa
	LP air compressor	1.0m3/min 1.0Mpa	1.6m3/min 1.0Mpa	2.0m3/min 1.0Mpa
	Air Tank	0.6m3 3.0Mpa	0.6m3 3.0Mpa	1.0m3 3.0Mpa
	Air dryer	1.0m3/min 3.0Mpa	2.0m3/min 3.0Mpa	6.0m3/min 3.0Mpa
Cooling water	Water Chiller	3HP	3HP	5HP
Machine	Size(L*W*H)	1900*1280*1930mm	1900*1860*1930mm	4100*1400*1800mm
	Weight	2000kg	3600kg	3000kg
Preform unscrambler	Size(L*W*H)	2000*950*2480mm	2000*950*2480mm	2000*950*2480
	Weight	250kg	250kg	250kg

A. Sample service
1. After you have paid the deposit, you can send us your bottle, we will help you debug the machine, test the sample, and will take the video and send it to you via email or WhatsApp.
2. Welcome to our factory to visit the operation of the machine.
B. After sales service
1. Installation: After the machine arrives at your company's factory, we will send engineers to install the machine and debug the machine.
2. Training: After the engineer has debugged the machine, he will help you train the company's employees and let them master the operation methods and normal maintenance of the machine.
3. Feedback: After the company has been running for a period of time, we will contact the customer for feedback and solve the problem.
4. Guarantee: Our company's machines are all provided with a one-year warranty.
5. Maintenance: We dispatch engineers to the factory for regular maintenance every once in a while to ensure the normal operation of the machine.
C. Customized service
We can design the machine according to the customer's requirements, do not change the existing machine structure, and customize the appropriate machine according to different requirements.
D.Packing Service
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Zhangjiagang Proman Machine Co. Ltd,is a production manufacturer and exporter specialized in water treatment plants,beverage filling machine, packing machine, bottle blowing machine, injection moulding machine and spare parts of filling line.
Our factory was established in the year of 1998, with the long history of accumulated experience in filling machine industry in south Jiangsu. There are many development engineers of filling machine in our company. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry.
Besides, we have our own designs for the bottles.
Proman Machine cooperated with many customers in recent years, we win the trust of customers from our high-quality products. And we are looking forward to the future cooperation with you if our products can impress you deeply
FAQ 1. Where is your factory?
Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
2. Do you have any technical supports with your Beverage Filling Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
You're always welcome to visit our company. If you have any interest on our products. Please do not hesitate to contact us.

---
