Yvp/Y2vp Series Frequency Conversion Speed Regulating Three-Phase Asynchronous Motor

Product Description

Product Description

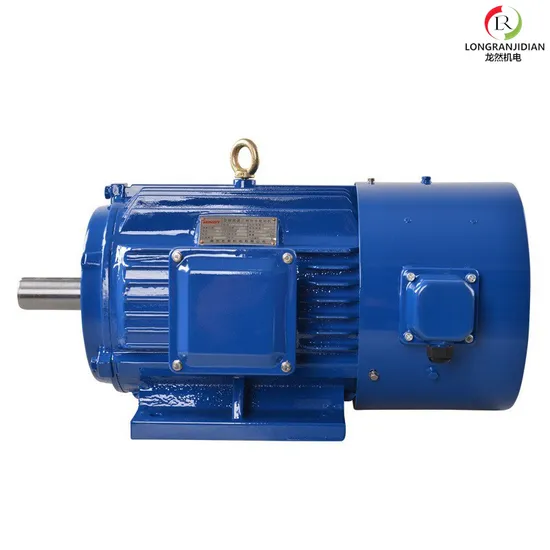

YVP/Y2VP Series Frequency Conversion Speed Regulating Three-Phase Asynchronous Motor The YVP/Y2VP series frequency conversion speed regulating three-phase asynchronous motor is a special-purpose motor designed by Longran Electromechanical (Zhejiang) Co., Ltd. It is compatible with various SPWM frequency conversion systems and comes equipped with an independent cooling blower for efficient cooling at different rotational speeds.
This motor is suitable for a wide range of applications including locomotive, metallurgy, textile, printing and dye, transporting, chemical industry, and mining. It offers energy conservation, a wide stepless speed regulation range, low noise, minimal vibration, low-speed output permanent torque, and high-speed permanent output power. The motor's installation size and power grade comply with IC standards, ensuring better commonability and interchangeability. The outer cover shelter has an IP54 grade, the cooling method is IC416, the work system is S1, and it features F grade insulation.
Longran Electromechanical (Zhejiang) Co., Ltd. can also produce customized motors according to clients' special requirements.
YVP Frequency Conversion Series Motor Installation Size Product Parameters
Introducing the YVF2-100L2-4 3KW special three-phase asynchronous motor designed for variable frequency speed regulation. This motor, with CE Approval, is part of the YVF2 series, specifically crafted for frequency conversion speed regulation. It combines a three-phase asynchronous motor with an electronic inverter to enable seamless speed adjustment within the 150~2750rpm range (4 poles). Ideal for machinery and equipment requiring versatile speed control. Widely utilized in industries such as transportation, metallurgy, textile, printing and dyeing, chemical, mining, fan, and water pump. Manufactured in compliance with national standard JB/T7118 and international IEC standards.
Company name: Longran Electromechanical (Zhejiang) Co., Ltd.

Frame Size:			80-355
Rated Voltage:			220/440V, 220/380V, 380/660V, 415V or request
Rated Frequency:			50HZ,60HZ
Rated Power:			0.55~250kW
Insulation Class:			F
Altitude:			≤1000m
Relative Humidity:			≤90%
Protection Class:			IP55
Cooling Method:			IC411
Ambient Temperature:			-15°-+40°C
Duty:			S1
Mounting:			B3,B5,B35,V1

Product Description Longran Electromechanical (Zhejiang) Co., Ltd. presents the Yvp/Y2vp Series Frequency Conversion Speed Regulating Three-Phase Asynchronous Motor. Ideal for industrial, universal, and household appliances, this AC motor ensures constant speed operation with three-phase stator configuration.

MODEL	Power(KW)	Rated current(A)	Rated torque(NM)	Constant torque frequency range(HZ)	Constant power frequency range(HZ)
Synchronous speed 1500r/min
YVF2-80M1-4	0.55	1.5	3.5	5-50	3-50
YVF2-80M2-4	0.75	2.0	4.7
YVF2-90S-4	1.1	2.8	7
YVF2-90L-4	1.5	3.7	9.5
YVF2-100L1-4	2.2	5.1	14
YVF2-100L2-4	3	6.8	19
YVF2-112M-4	4	8.7	25.4
YVF2-132S-4	5.5	11.4	35		50-100
YVF2-132M-4	7.5	15.3	47.7
YVF2-160M-4	11	22.1	70
YVF2-160L-4	15	30.1	95.5
YVF2-180M-4	18.5	35.4	117.1
YVF2-180L-4	22	41.6	140.9
YVF2-200L-4	30	55.9	190.9
YVF2-225S-4	37	68.2	235.5
YVF2-225M-4	45	82.5	286.4
YVF2-250M-4	55	101	350.1	3-50
YVF2-280S-4	75	132.4	477.5
YVF2-280M-4	90	157.4	572.9
YVF2-315S-4	110	191.4	700.2
YVF2-315M-4	132	227.6	840.3
YVF2-315L1-4	160	274.2	1018.1
YVF2-315L2-4	200	341.6	1273.2

Company Profile Longran Electromechanical (Zhejiang) Co., Ltd. specializes in the production of various AC and DC motors. The main products are YE5 series high-efficiency three-phase asynchronous motors, YE4 series high-efficiency three-phase asynchronous motors, YL, ML series double-value capacitor motors, YC series capacitor starter motors, YY, MY series capacitor running motors, JY series motors, YS, MS series small power motors.JY, JW, JZ series, YEJ electromagnetic brake series, YVP, Y2VP, MLVP frequency conversion speed regulation series, DC brushless series, DC high pressure cleaning series, vehicle motor series, etc.The company has a strong technical force and has hired many senior engineers and a group of high-quality technical personnel.Modern equipment, high-tech management, and advanced testing capabilities are the guarantee of product quality. Quality creates excellence, and service embodies extraordinary. Joining hands with Longran to win the future is the solid concept of Longran.In line with the tenet of "seeking development with science and technology, surviving with quality", we are meticulous and keep improving" has always been our faithful commitment to serving customers. Our products sell well all over the country and are exported to Europe, South America, the Middle East and Southeast Asia. People from all walks of life are welcome. Letters from people to discuss business.
more products Click on the link to see what you need
Longran's main products:CE certificate/New National Standard GB/T28575-2012 1 Secondary Energy Efficiency/IP55:* YE4 Super High Eficiency Secondary Energy Efficiency Motor;* YE3 Super High Efficiency Energy Saving Series Three -phase Asynchronous Motor;* YE3 Super High Efficiency Energy Saving Aluminum Shell Motor;
* YEJ2 series electromagnetic brake three- phase asynchronous motor;* YBX3 series flameproof three- phase asynchronous motor;
* Riello Combustaion Engine Specific Motor;
*ZFY series special motor combustion engine
*DC High-Votage Cleaning Machine
*LRYBDC Series Flameproof Electric Motor for Industrial Use with High Efficiency
*LR Series Waterproof Motor for Underwater Use with IP68 Protection Rating
* YVP2 Frequency conversion series three phase asynchronous motor
*YC Series heavy-duty single phase capacitions start induction motor
*YL SEries single phase dual capacitor induction motor
*MY ML Series aluminum sell single phase motor
*MS CDL Series high effciency three-phase asynchrorous motor* YD2 series two-speed multi-speed three phase asynchronous motor;* YVFEJ2 series variable frequency brake three-phase asynchronous motor,* YDEJ series Multi-speed electromagnetic brake three. phase asynchronous motor, oil pump motor,* special motor for stone machinery and equipment, custom-made motors with special specifications for powerrequirements, and motors with different frequencies and different pressures.* The protection grades include IP55, IP66, etc. and various special motors derived from them.
Certifications
Our Advantages
FAQ 1,Q: Can you make as per customer drawing?
A: Yes, we offer customized service for customers accordingly. We can use customer's nameplate for the electric molors.
2. Q: What is your terms of payment ?
A: 30% deposit before production,balance T/T before delivery.
3. Q: Are you a trading company or manufacturer?
A.We are a manufacurer with advanced equ pment and experienced workers.
4. Q: What's your production capacity?
A:4000-5000 PCS/MONTH.
5. Q: Free sample Is available or not?
A:Yes, we can supply free sample if customer agree to pay for the courier cost.
6. Q: Do you have any certiflcate?
A:Yes, we have CE certificate and TUV certificate report.

---
