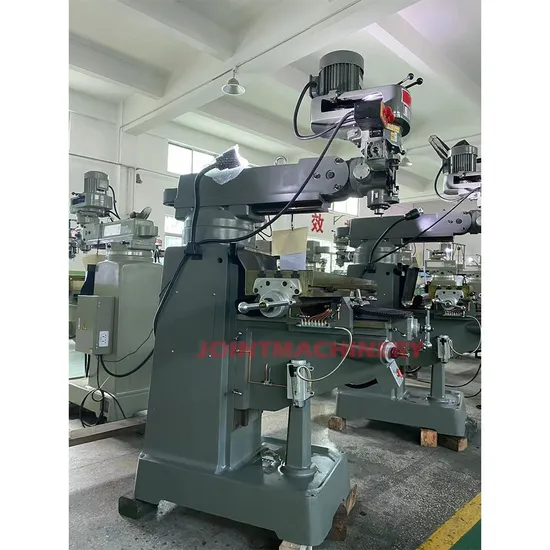

Universal Milling Machine High Precision Manual Milling Machine Tool for Metal Molds

Product Description

High cost-effective, durable quality, universal models
√ Suitable for household and daily necessities mold processing.
√ Excellent accessories, strict quality control, long durability.
√ Hard-grinding guide way, thick machine body, effctive casting, the whole machine is durable.
√ Milling head key parts from Taiwan, bearings from Chinese famous brand.
√ High efficiency, strong cutting machine performance.
1. WORKTABLE
Crafted with meticulous ultra-audio quenching, precision grinding, and expert scraping guides, our worktable is engineered for accuracy and reliability. Enhance versatility with the option of a rotary table, elevating your machining capabilities.
2. TURRET MILLING HEAD
Our sophisticated turret milling head is designed to swivel 45° forward-backward and rotate 90° left-right effortlessly, allowing for precise milling at unique and complex angles.
3. SPINDLE
Engineered with a high precision R8/NT30/NT40 spindle, it features an impressive spindle runout of just 0.003mm, delivering unmatched accuracy and performance.
4. X/Y/Z AUTO FEED
The X/Y axis auto feed along with the Z axis electric lifting mechanism significantly enhance machining efficiency, streamlining operations and boosting productivity.
5. DRO
Customize your setup with an optional 2-axis or 3-axis DRO, tailored to your specific needs, ensuring precision and enhancing the operational efficiency of your processes.
Universal Milling Machine High Precision Manual Milling Machine Tool for Metal Molds

Model				4M
Table size			mm	1270*254*80
Travel		X axis	mm	900
		Y axis	mm	390
		Z axis	mm	340
Travel of spindle quill			mm	127
Maximum distance from spindle nose to table			mm	390
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	66-4540
		60HZ	rpm	80-5440
	Rotation speed (Variable speed milling head)	50HZ	rpm	40-3125
		60HZ	rpm	50-3750
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
		60HZ	rpm	0-4200
	Taper			R8/NT30
	Rated power		HP	3HP
Tilt Angle			Forward and backward	±45°
			Left and Right	±90°
Dimension			mm	1500*1700*2150
Weight			kg	1350

Shenzhen Joint Machinery Co., Ltd. is a leading professional manufacturer and exporter of premium CNC lathe machines, CNC deep hole drilling machines, and Swiss-type automatic lathes. We offer a diverse range of milling and grinding machines, all designed with precision, stability, and dependability in mind. By incorporating pioneering technologies from Taiwan and Germany, our production processes guarantee superior quality and unmatched reliability. Our dedicated pursuit of excellence ensures that each product not only meets but exceeds the highest industry standards. Trusted by clients around the globe, our esteemed products have made their mark in Asia, Europe, South America, North America, and beyond. We are proud of our long-term partnerships with clients worldwide, consistently generating substantial business value together and delivering exceptional services that cater to diverse and complex machining demands.

---
