Product Details
Product Description
Product Description

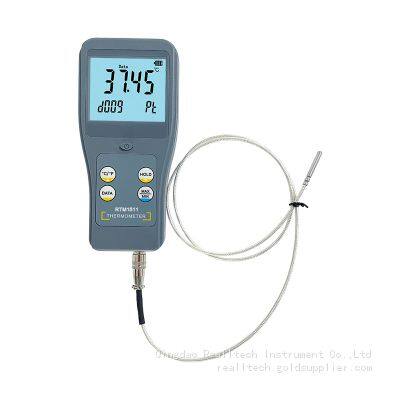

RTM1511 High-precisionThermal Resistance Thermometer
Introduction
It is a high-precision RTD thermometer that uses PT1000 platinum thermal resistance as a sensor to measure temperature signals. Large LCD screen display, 0.01 Resolution, refresh once per second, accuracy up to ±0.1°C. With data memory and view functions. Widely used in industrial production, research and development experiments, food processing, refrigerated storage, precision temperature measurement and other occasions.
Features
l Large LCD with display.
l High-precision PT1000 platinum thermal resistance is used for temperature measurement.
l Temperature unit (°C/°F).
l 0.01 resolution.
l Accuracy up to ±0.1°C.
l With data storage and view functions (99 Groups).
l With the displayed values hold function.
l With maximum and minimum values function.
l With battery indication function.
l With automatic power off function.
Product Specifications
Display
| LCD
|
Type
| PT1000
|
Range
| -200~500°C (-328~932°F)
(Depend on Probe)
|
Accuracy
| ±0.1°C
|
Resolution
| 0.01 (-100~+100)
0.1 (Other)
|
Sampling Channel
| 1 Channel
|
Unit
| °C/°F
|
Data Storage Mode
| Manual Mode, Data can be Viewed
|
Data Storage
| 99 Groups (Can be Customized)
|
Operating Conditions
| Temperature: 0~50°C;
Humidity: 0~80%RH (No Condensation)
|
Storage Conditions
| Temperature: -10~60°C;
Humidity: 0~90%RH (No Condensation)
|
Power Supply
| 4×1.5V AAA(UM-4)Battery
|
Size
| 170*80*31mm
|
Weight
| 176g (Not Including Batteries)
|
Standard Accessories
Main Unit
| 1
|
PT-01A Probe
| 1
|
Manual
| 1
|
Carrying Case
| 1
|
PT-01A Probe Specifications
Range
| -50~200°C (-58~392°F)
|
Size (φ*L)
| 4*20mm
|
Note：If other type of probe is needed, please specifying when placing order.
The warranty period is 12 months
>>
