3-15ton/H Agriculture Bottom Discharge Disc Hay Chaff Cutter

Product Description

Product Description

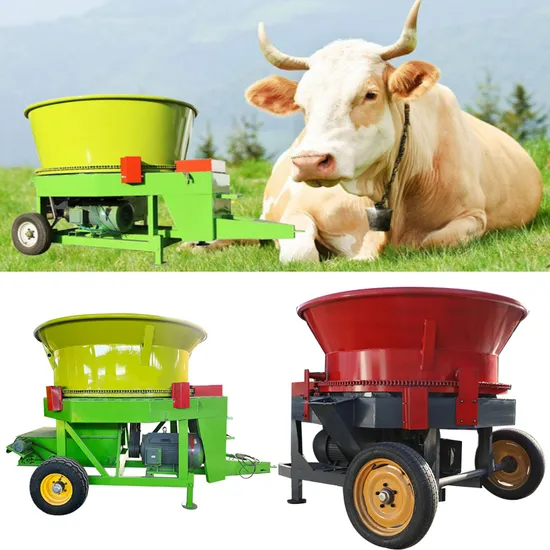

Disc Straw Rotary Cutter
It is mainly used for crushing crop straw, wheat straw, peanut stalk, sweet potato stalk, tobacco stalk, cotton stalk, bean stalk, corn stalk, pasture, seaweed and various branches, etc. The bale shredder is to put the bundled and bundled materials directly into the rotary cutter to shred the materials. The machine rotates the blades to shred the materials. The output is high, and the fresh and dry materials can be shredded directly. The machine performance is stable. Output according to user requirements. The bale shredder consists of a frame, a rotary cutter, a feeding device and an overload protection device. The machine is reasonable and simple, has a long service life and is not easy to be damaged. The blade of the rotary cutter rotor is sharp and the blades are matched in a variety of ways
Features
1. The turntable can store a large amount of materials to realize intermittent feeding.
2. The inner disc of the rotating disc is equipped with a damping plate, which can catch the bale and rotate it, and the cutting efficiency is high.
3. High chopping strength.
4. Breaking into bundles saves more human resources.
Product Parameters

Model	Power	Dimension	Capacity	Weight
RH-FS-60	22kw	2700*2000*2100mm	2-3ton/h	1100kg
RH-FS-100	45kw	3200*3500*2200mm	5-8ton/h	2000kg
RH-FS-130	90kw	3400*2600*2600mm	8-15ton/h	3000kg

Detailed Photos

---
